3 x 500 front-lower cover
1. Remove the lowest cassette.
2. Remove one screw (callout 1), and then slide the 3 x 500 front-lower cover (callout 2) toward the left
side of the feeder to remove it.

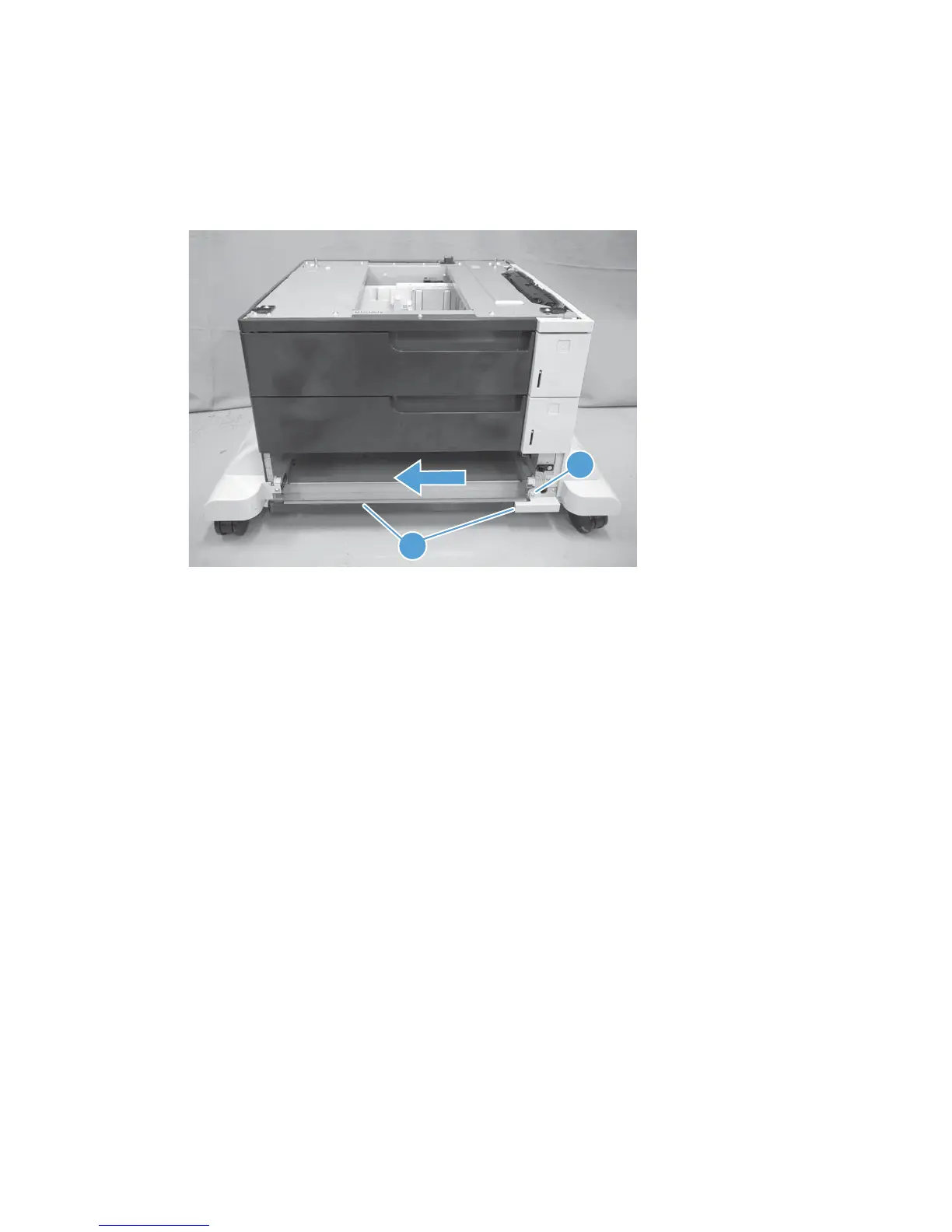

Figure 2-196 Remove the 3 x 500 front-lower cover
