3 x 500 front-upper cover
1. Remove the right-corner cover (see 3 x 500 right-corner cover on page 232).
2. Remove the upper cassette.
3. Remove two screws (callout 1), release two tabs (callout 2), and then remove the front-upper cover
(callout 3).

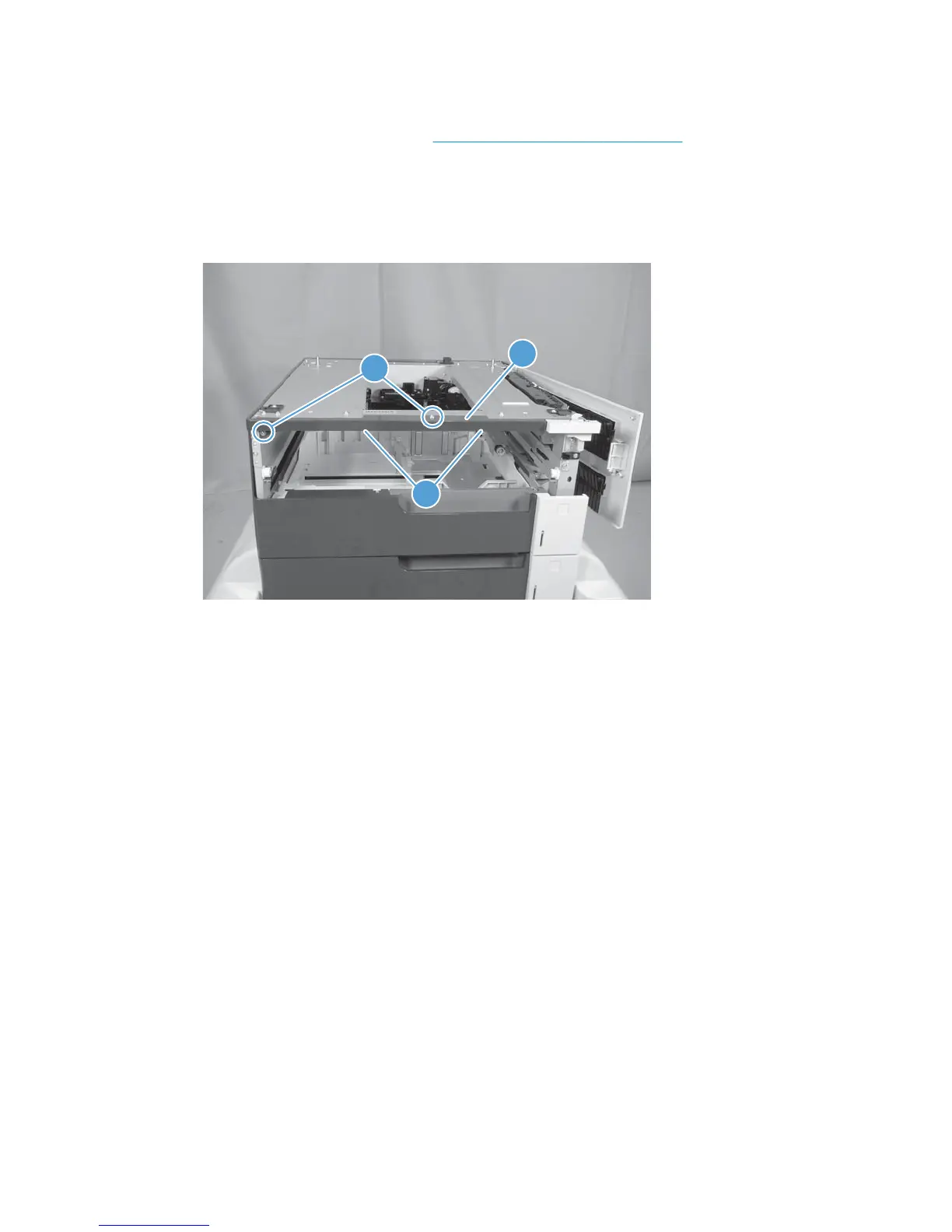

Figure 2-200 Remove the 3 x 500 front-upper cover
1
2
3
