3 x 500 paper deck pickup assembly
Before proceeding, remove the following components:
●
3 x 500 rear cover. See
3 x 500 rear cover on page 225.
●
Right-corner cover. See
3 x 500 right-corner cover on page 232
●
Right door assembly. See
3 x 500 right-door assembly on page 234.
●
Right-lower cover. See
3 x 500 rear-lower cover on page 239.
NOTE: Remove this cover onlyif you are removing the paper-feeder cassette 3 pickup assembly.
Remove the 3 x 500 paper deck pickup assembly
This procedure describes removing the paper deck cassette 1 assembly. Use this procedure for any of the
paper deck pickup assemblies.
1. Remove one screw (callout 1), and then disconnect three connectors (callout 2).

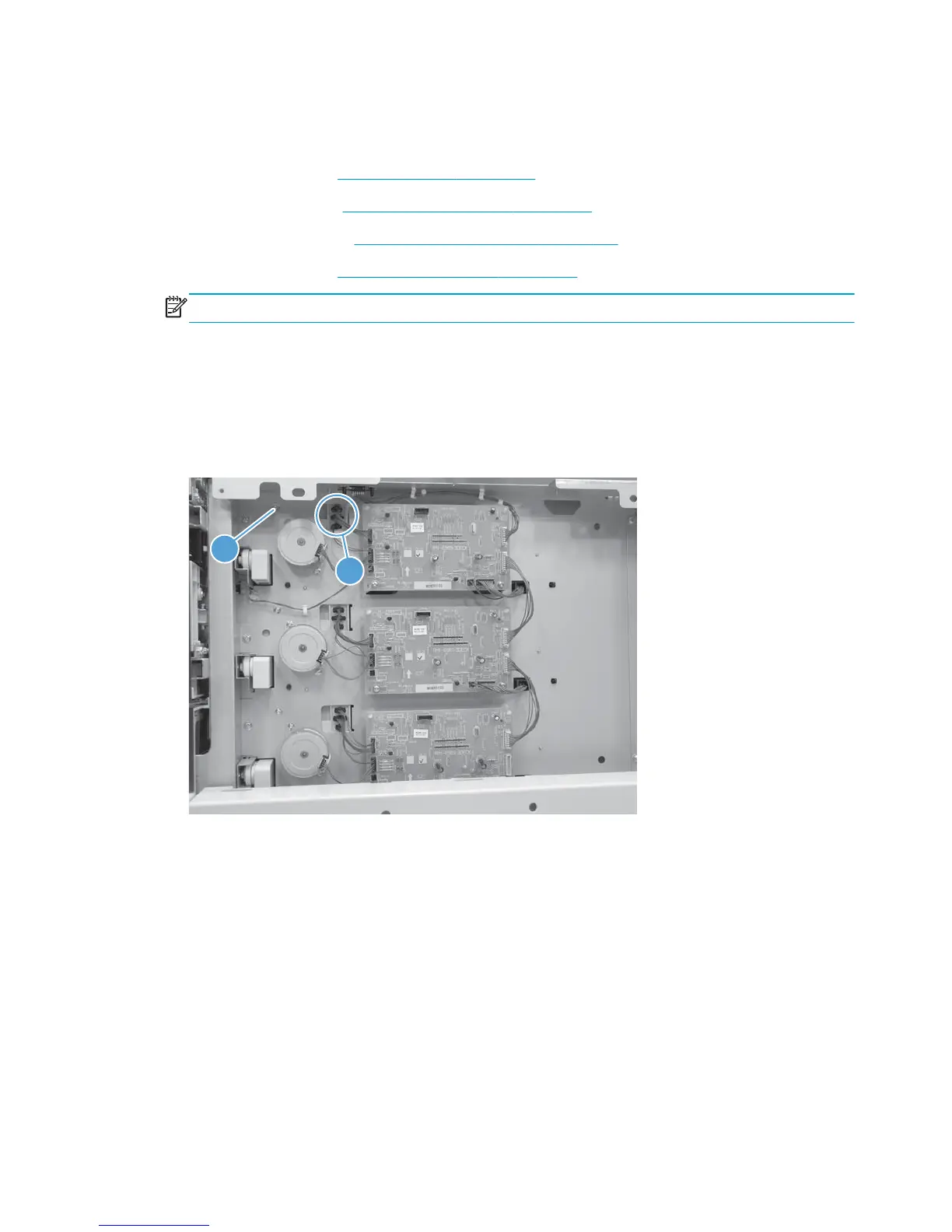

Figure 2-208 Remove the 3 x 500 paper deck pickup assembly (1 of 3)
1
2
