3 x 500 rear-lower cover
Before proceeding, remove the following components:
●
Lowest cassette.
●
Rear cover. See
3 x 500 rear cover on page 225.
●
Right door assembly. See
3 x 500 right-door assembly on page 234.
●
Right-lower cover. See
3 x 500 right-lower cover 1 on page 236.
●
Left cover. See
3 x 500 left cover on page 231.
●
Left-lower cover. See
3 x 500 left-lower cover on page 238.
Remove the 3 x 500 rear-lower cover
Remove two screws (callout 1), and then remove the 3 x 500 rear-lower cover.

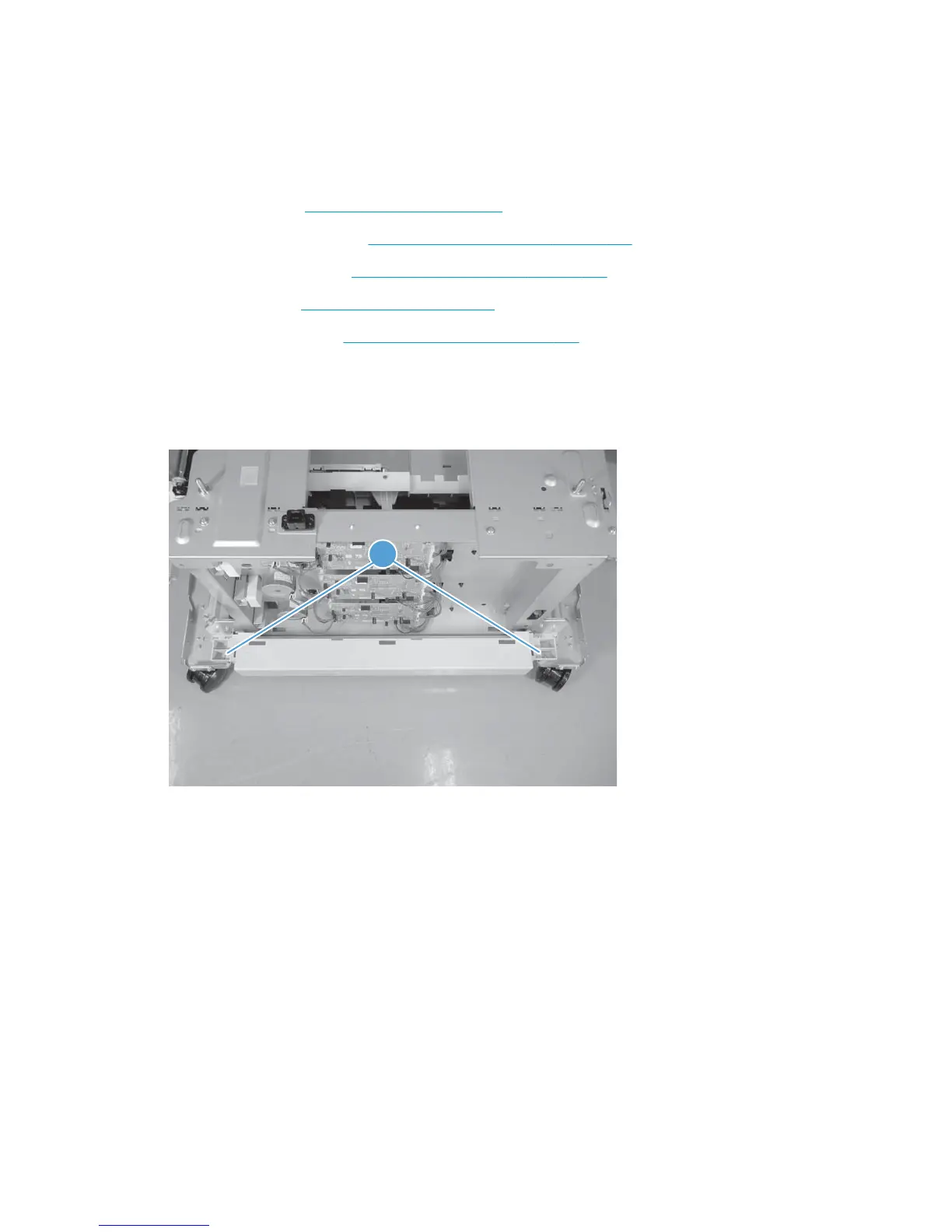

Figure 2-207 Remove the 3 x 500 rear-lower cover
1
ENWW Removal and replacement procedures 239
