3 x 500 left-lower cover
1. Remove the lowest cassette, and then remove the 3 x 500 right door assembly (see 3 x 500 left cover
on page 231).
2. Remove three screws (callout 1), and then remove the 3 x 500 left-lower cover.

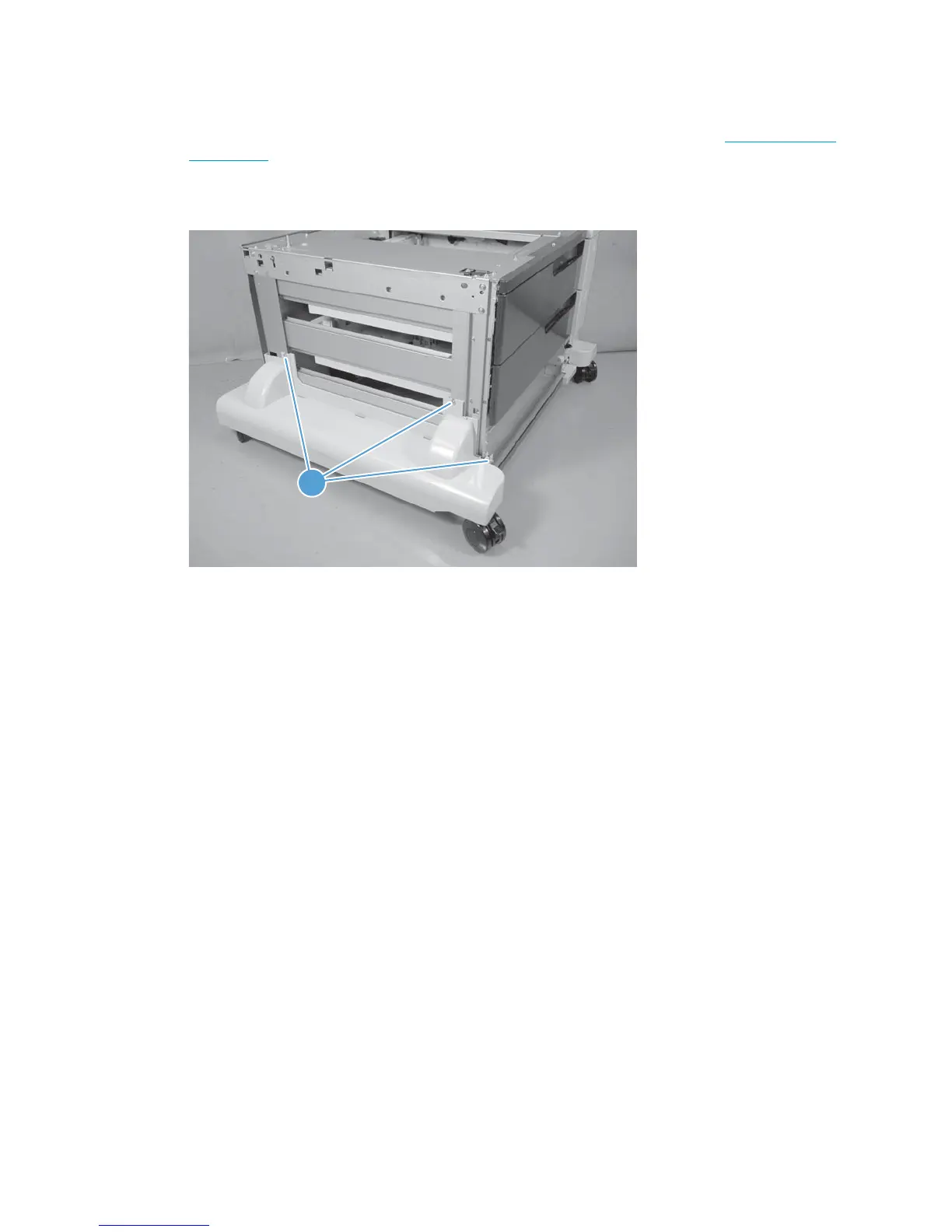

Figure 2-206 Remove the 3 x 500 left-lower cover
1
1
238 Chapter 2 Removal and replacement ENWW
