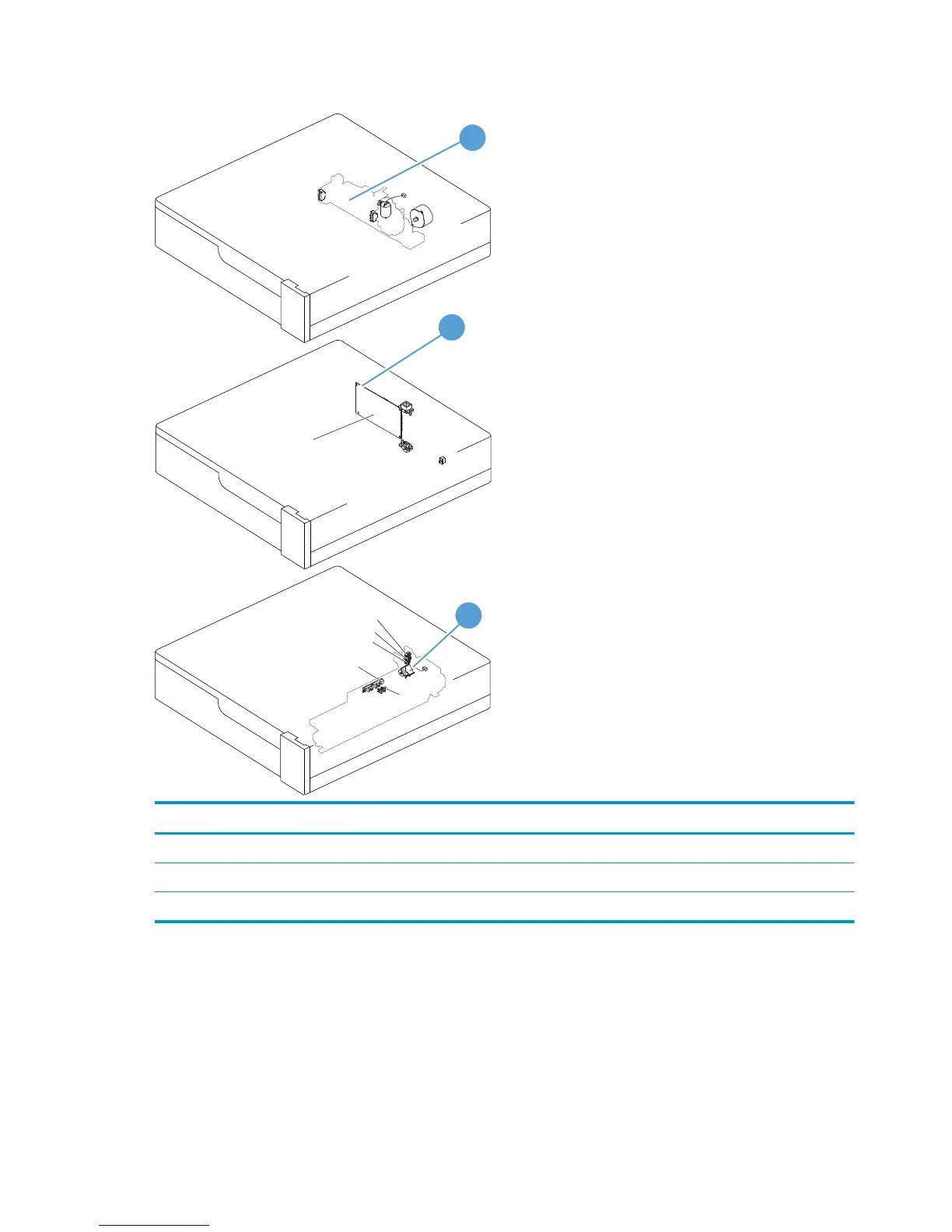

Figure 3-34 Paper feeder connections
J707
J706
J2006
J704
J733
J734
J705
J703
J752
J751
J701
J702
J703
Paper feeder controller PCA
3
2
1
Item Description
1 Paper feeder lifter-drive assembly
2 Paper feeder PCA
3 Paper feeder paper-pickup assembly
