Jam locations
Use this illustration to identify locations of jams. In addition, instructions appear on the control panel to
direct you to the location of jammed paper and how to clear it. Internal areas of the product that might need
to be opened to clear jams, have green handles or green labels.
WARNING! To avoid electrical shock, remove any necklaces, bracelets, or other metal items before reaching
into the inside of the product.
NOTE: Sensors in the paper path generate event codes if a jam occurs. For sensor locations, see Paper path
jam sensors. For jam event code information, see Event codes for jams.

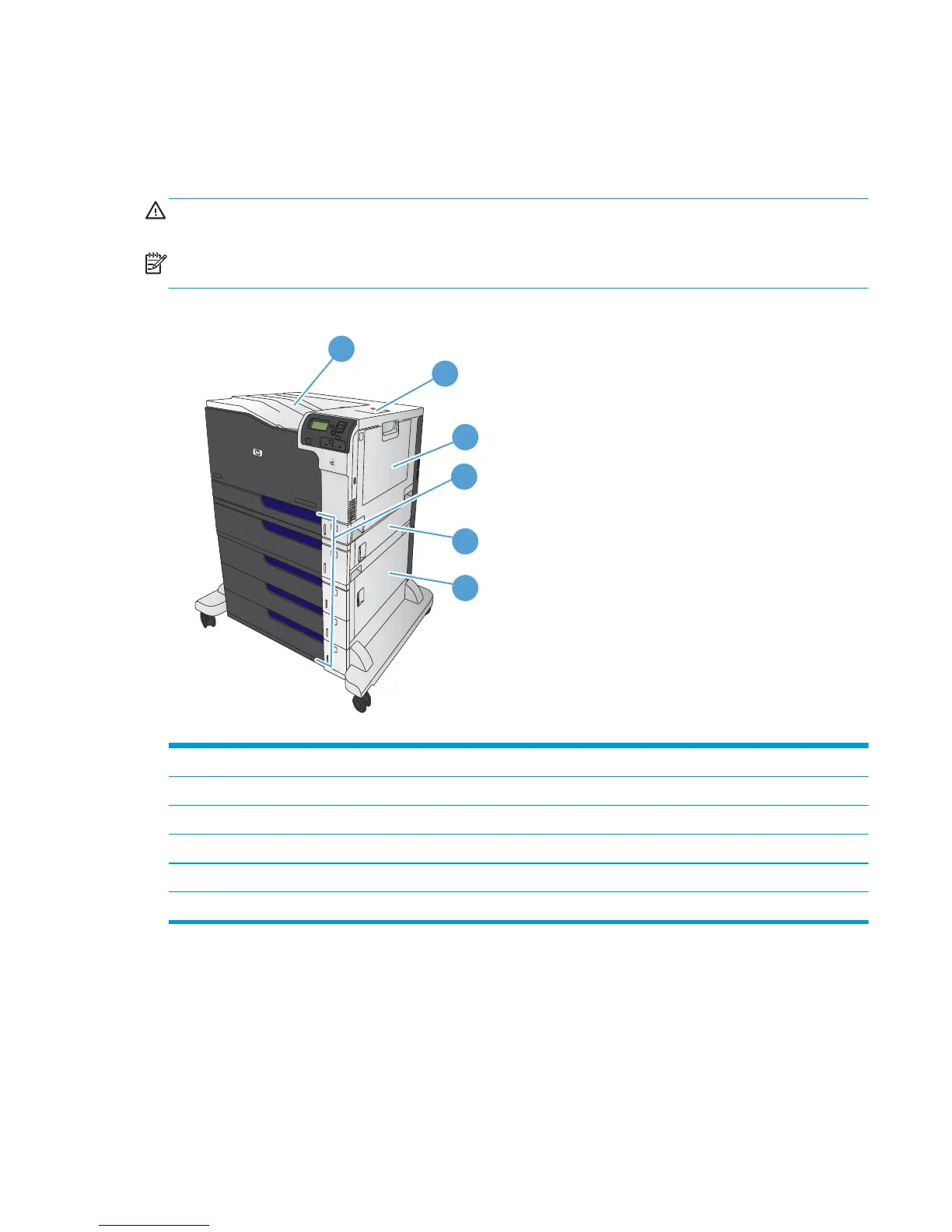

Figure 3-55 Jam locations
2
3
5
1
4
6
1 Output bin
2 Upper right door
3Tray 1 area
4 Tray 2, Tray 3, and optional Trays 4, 5, and 6
5 Middle right door
6 Lower right door
ENWW Clear jams 491
