HP M750 series

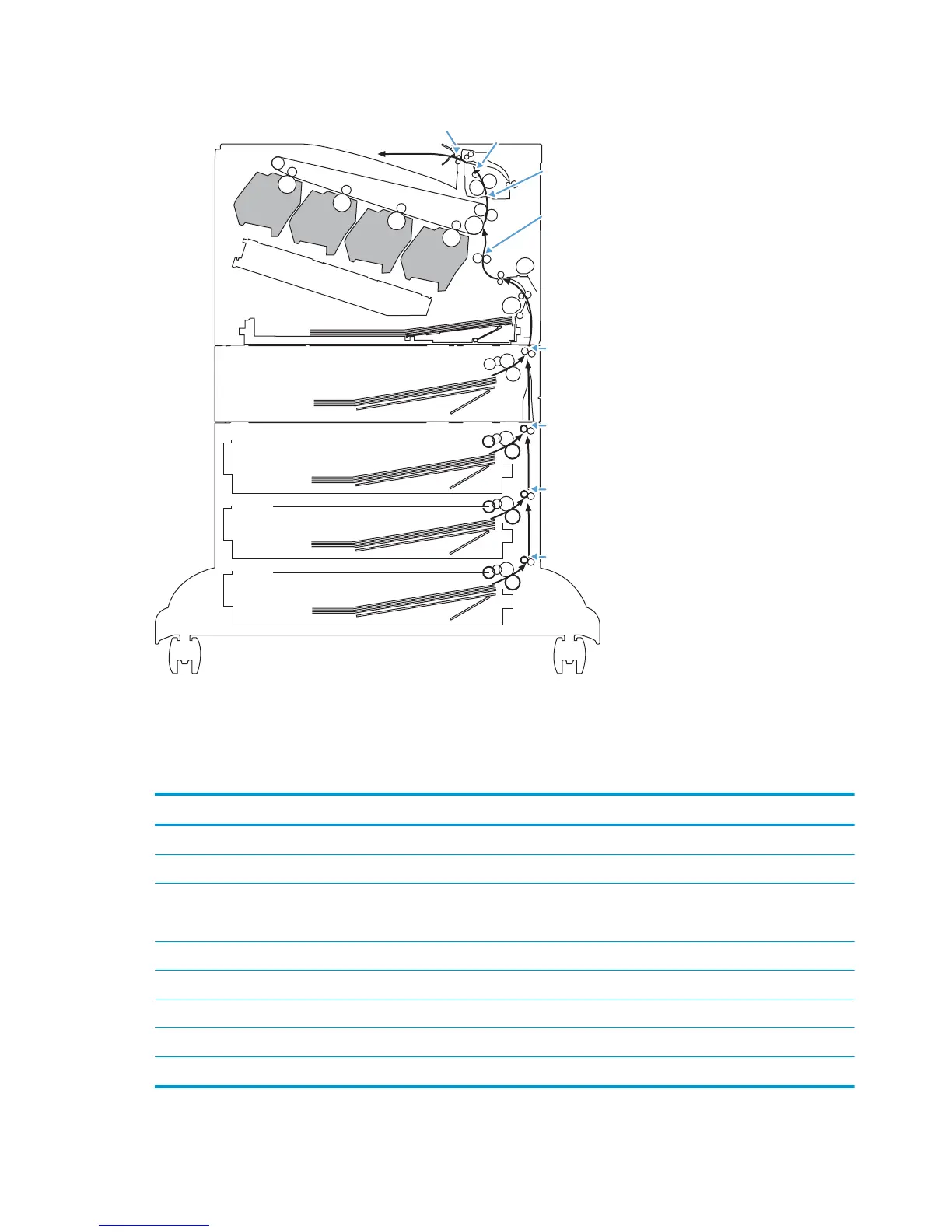

Figure 3-56 Paper path jam sensors
Y
B
C
M
PS10
PS6
PS7
PS8
PS5
SR1
SR1
SR81
SR91
Note: Both the 1 X 500-sheet feeder and the
3 X 500-sheet feeder use a SR1 tray feed sensor.
Table 3-41 Paper path jam sensors
Sensor Description
PS5 Registration sensor
PS6 Fuser output sensor
PS7
PS8
Loop sensor
PS10 Bin full sensor
SR1 Tray 3 feed sensor
SR1 Tray 4 feed sensor
SR81 Tray 5 feed sensor
SR91 Tray 6 feed sensor
