Motors and solenoids

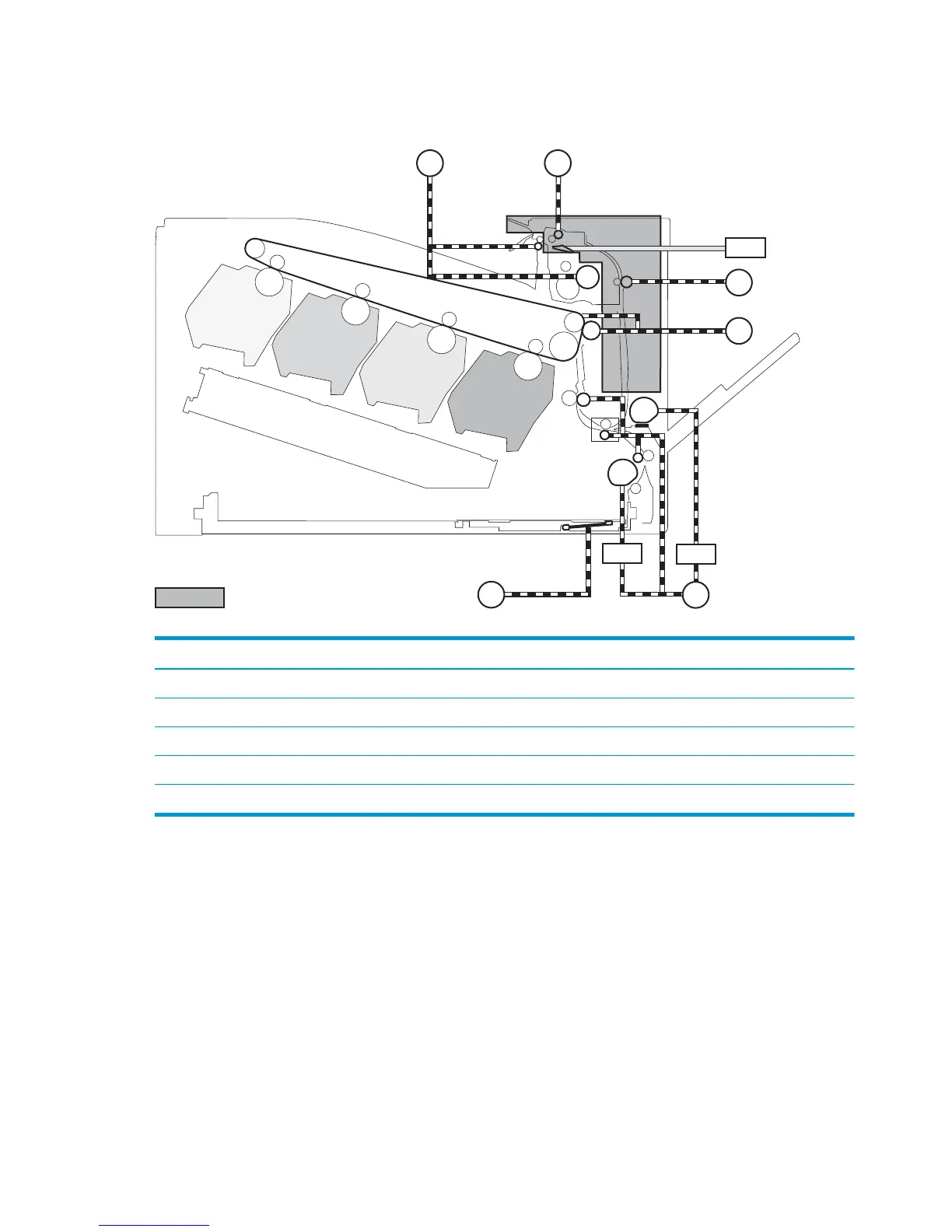

Figure 1-33 Motors and solenoids (paper path)
M4
SL3
M1
M9
M5
SL2
SL1
M7
M8
For duplex model only
Table 1-6 Motors and solenoids (paper path)
Item Description Item Description
M1 ITB motor M9 Tray 2 cassette lifter motor
M4 Fuser motor SL1 Tray 2 cassette pickup solenoid
M5 Pickup motor SL2 Tray 1 (MP tray) pickup solenoid
M7 Duplex reverse motor (duplex models only) SL3 Duplex reverse solenoid 1 (duplex models only)
M8 Duplex feed motor (duplex models only)
Pickup and feed block
The pickup-and-feed block picks one sheet of paper from the Tray 2 cassette or the MP tray and feeds it into
the fuser.
Tray 2 cassette pickup
The operational sequence of the Tray 2 cassette pickup is as follows:
1. The product is turned on or the Tray 2 cassette is inserted.
2. The lift-up operation and the lifting plate spring move up the lifting plate to the position where the
paper can be picked up.
3. The DC controller rotates the pickup motor when it receives a print command from the formatter.
46 Chapter 1 Theory of operation ENWW
