HP M750 series

●
Loop sensor 2 (PS8)
●
Output bin media full sensor (PS10)

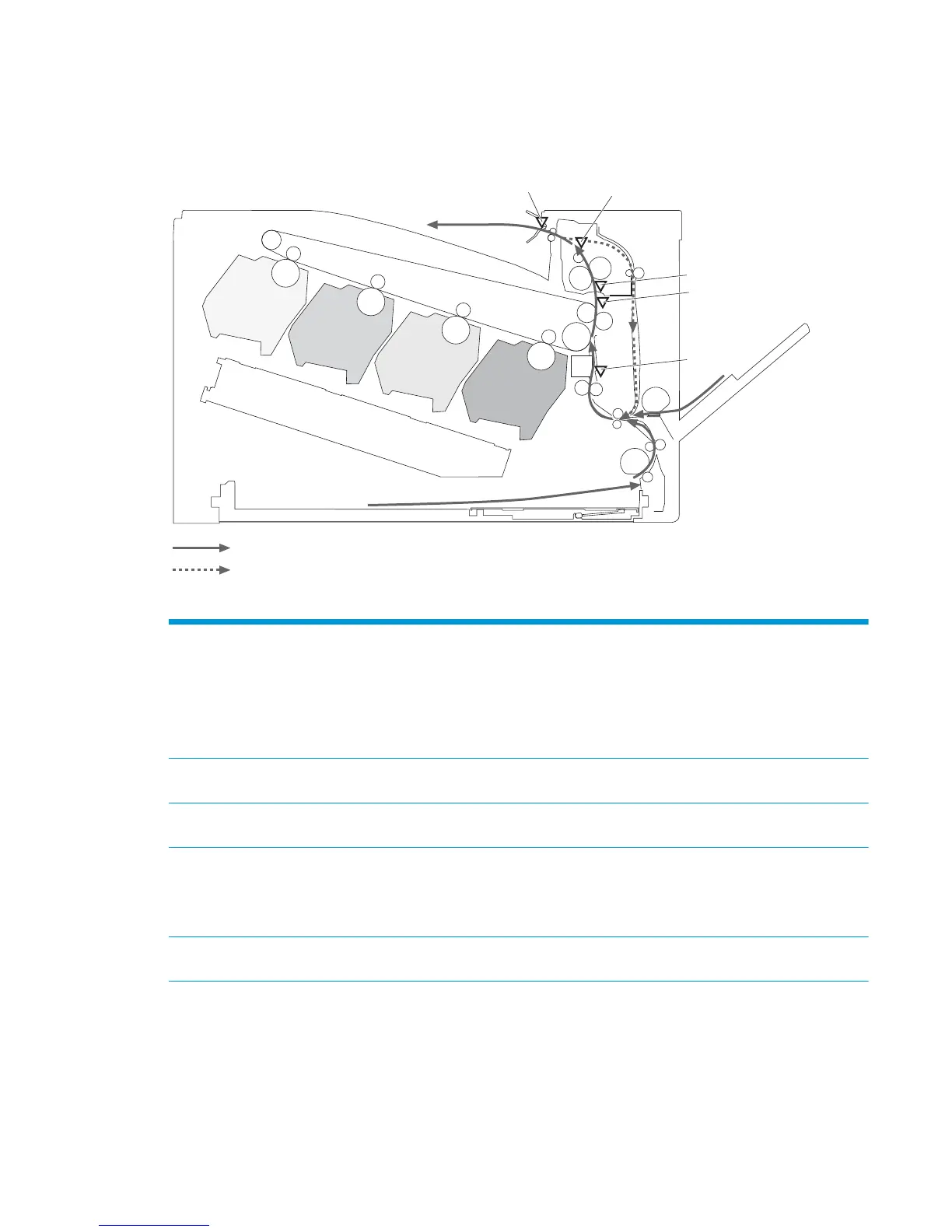

Figure 1-47 Sensors for jam detection
PS6
PS7
PS8
PS5
Simplex media path
Duplex media path (duplex model)
PS10
The product detects the following jams:
Pickup delay jam Tray 1 (MP tray): The TOP sensor does not detect the leading edge of paper within a specified
period, including a retry, after the MP tray pickup solenoid is turned on.
Tray 2 cassette: The TOP sensor does not detect the leading edge of paper within a specified
period, including a retry, after the Tray 2 cassette pickup solenoid is turned on.
Paper feeder: The TOP sensor does not detect the leading edge of paper within a specified period
after the paper-feeder (PF) feed sensor detects the leading edge.
Pickup stationary jam The TOP sensor does not detect the trailing edge of paper within a specified period after the leading
edge of paper reaches the secondary transfer roller unit.
Fuser delivery delay jam The fuser delivery sensor does not detect the leading edge of paper within a specified period after
the leading edge of paper reaches the secondary transfer roller unit.
Fuser delivery stationary jam The fuser delivery sensor does not detect the trailing edge of paper within a specified period after
the TOP sensor detects the trailing edge.
The output bin media full sensor does not detect the leading edge of paper within a specified period
after the fuser delivery sensor detects the leading edge.
Wrapping jam The fuser delivery sensor detects a paper absence yet it does not detect the trailing edge of paper
after it detects the leading edge.
