HP M750 series

Paper-feeder paper pickup and feed
The pickup-and-feed operation picks up one sheet of print media in the paper-feeder cassette and feeds it to
the product.

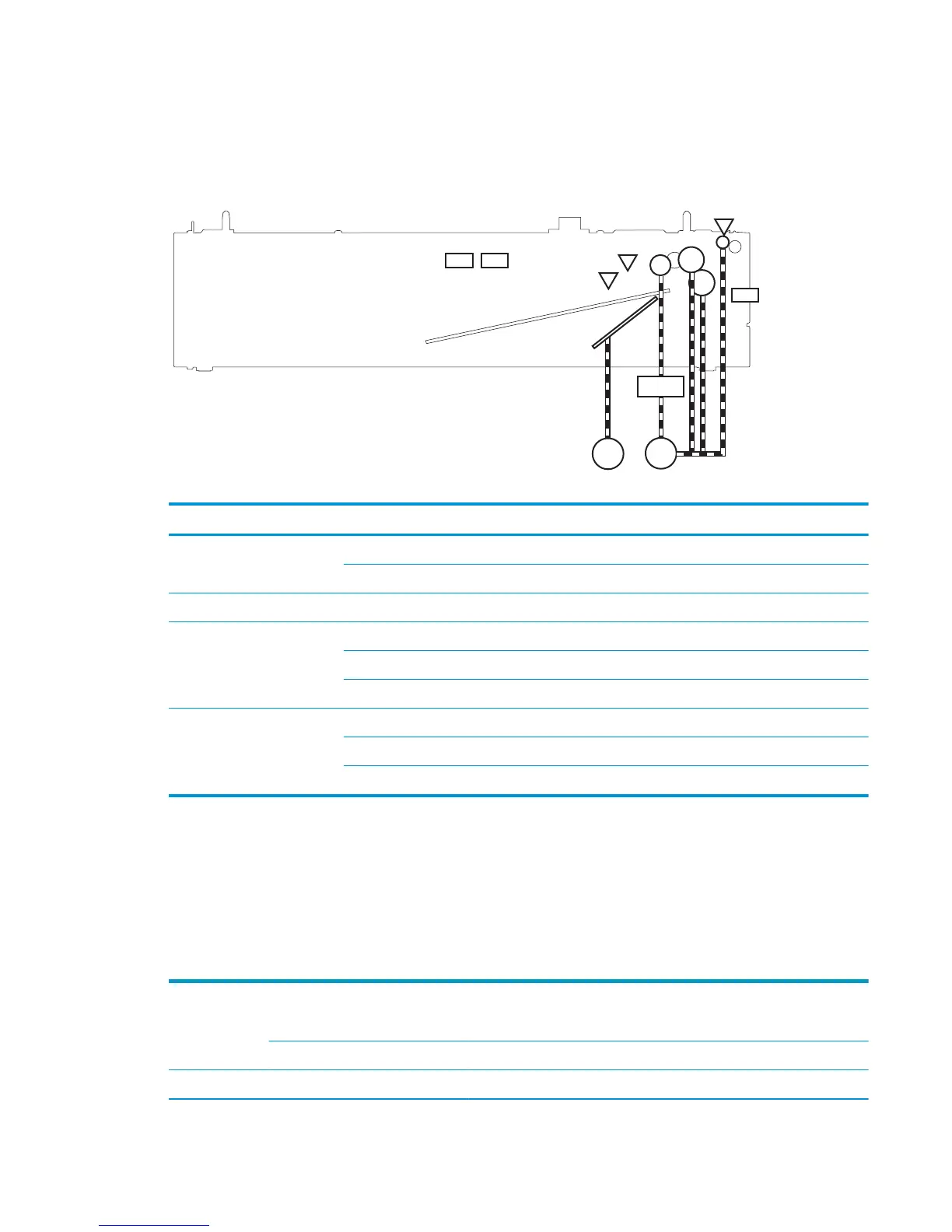

Figure 1-51 Paper-feeder electrical components
M1
M2
SL1
SR1
SR2
SR3
SW1
SW2SW3
Table 1-11 Paper-feeder electrical components
Component type Abbreviation Description
Motor M1 PF pickup motor
M2 PF lifter motor
Solenoid SL01 PF pickup solenoid
Photointerruptor (sensor) SR1 PF paper-feed sensor
SR2 PF paper-stack surface sensor
SR3 PF cassette paper-presence sensor
Switch SW1 PF door-open switch
SW2 PF cassette paper end-plate position switch
SW3 PF cassette paper-width switch
Cassette media-size detection and cassette-presence detection
The paper feeder detects the size of the paper loaded in the paper feeder cassette by monitoring the paper
feeder cassette media end switch and the paper feeder cassette media width switch. It also detects the
presence of cassette by monitoring the switches. The paper feeder controller notifies the formatter through
the DC controller when it determines a cassette is absent.
Table 1-12 Cassette media-size detection and cassette-presence detection (Tray 3)
Paper size Paper feeder
Cassette media-width sensor
Paper feeder
Cassette media-end switch
Top switch Center switch Bottom switch Top switch Center switch Bottom switch
Executive Off On On On On On
ENWW Paper feeder 69
