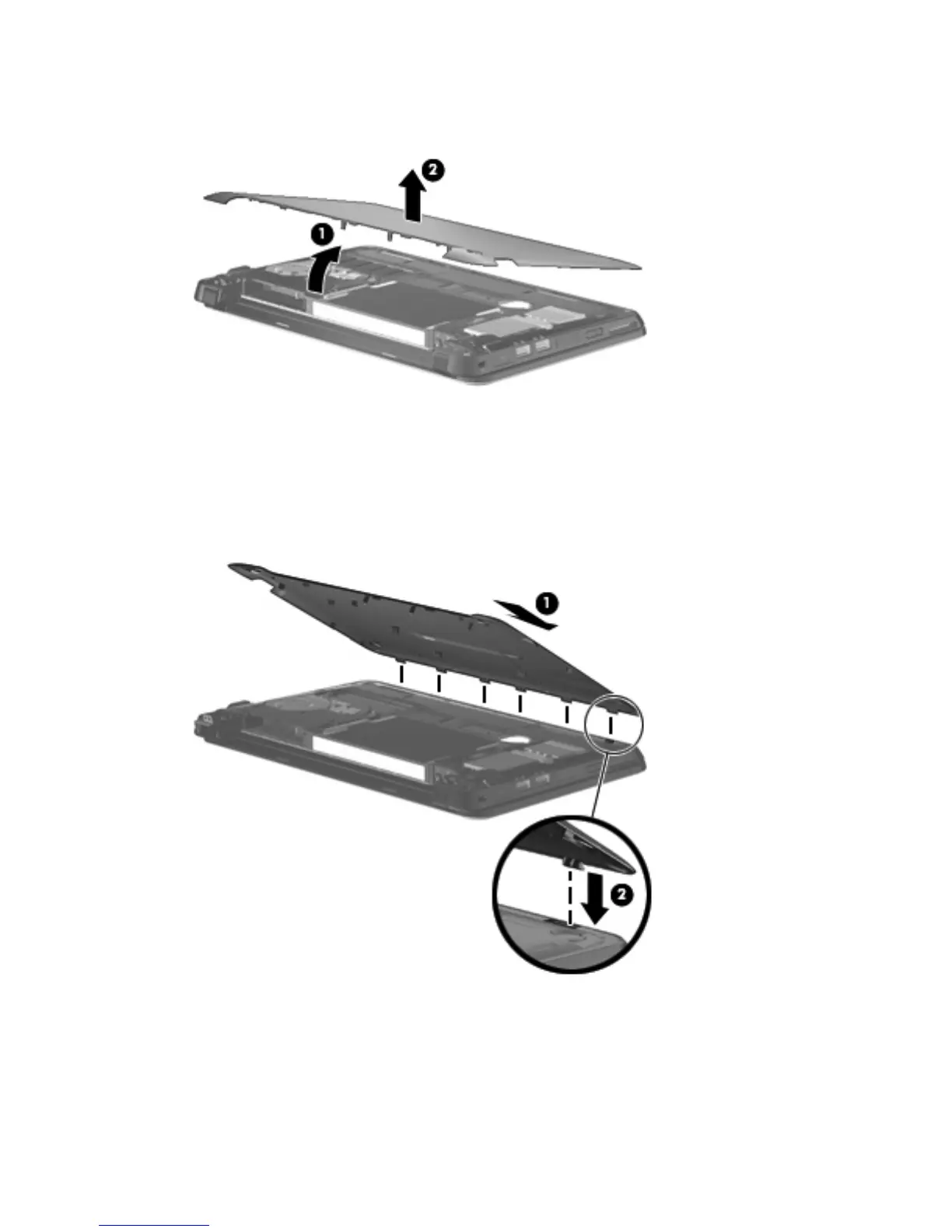

5. Continue lifting the rear edge of the service cover (1) up and forward until it rests at an angle,
and then remove the service cover (2).
Install the service cover:
1.
Place the service cover above the computer at an angle, with the front edge toward the front of the
computer.
2. Insert the front edge of the service cover (1) into the front edge of the base enclosure, making sure
the tabs on the cover insert into the slots on the base enclosure (2).
42 Chapter 4 Removal and replacement procedures
