item Component Description
(6) RJ-45 (network) jack and cover Connects a network cable.
(7) Security cable slot Attaches an optional security cable to the computer.
NOTE: The security cable is designed to act as a
deterrent, but it may not prevent the computer from
being mishandled or stolen.

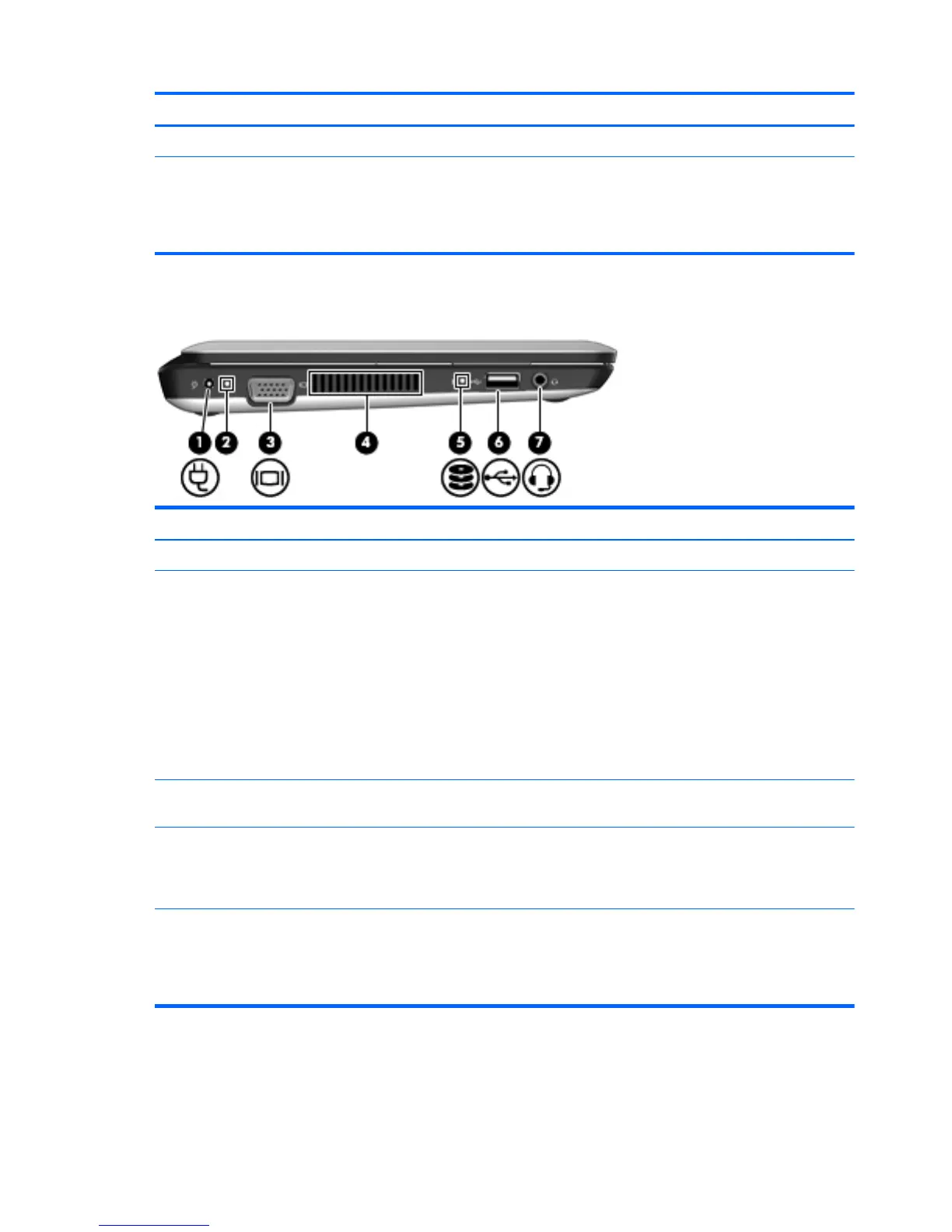

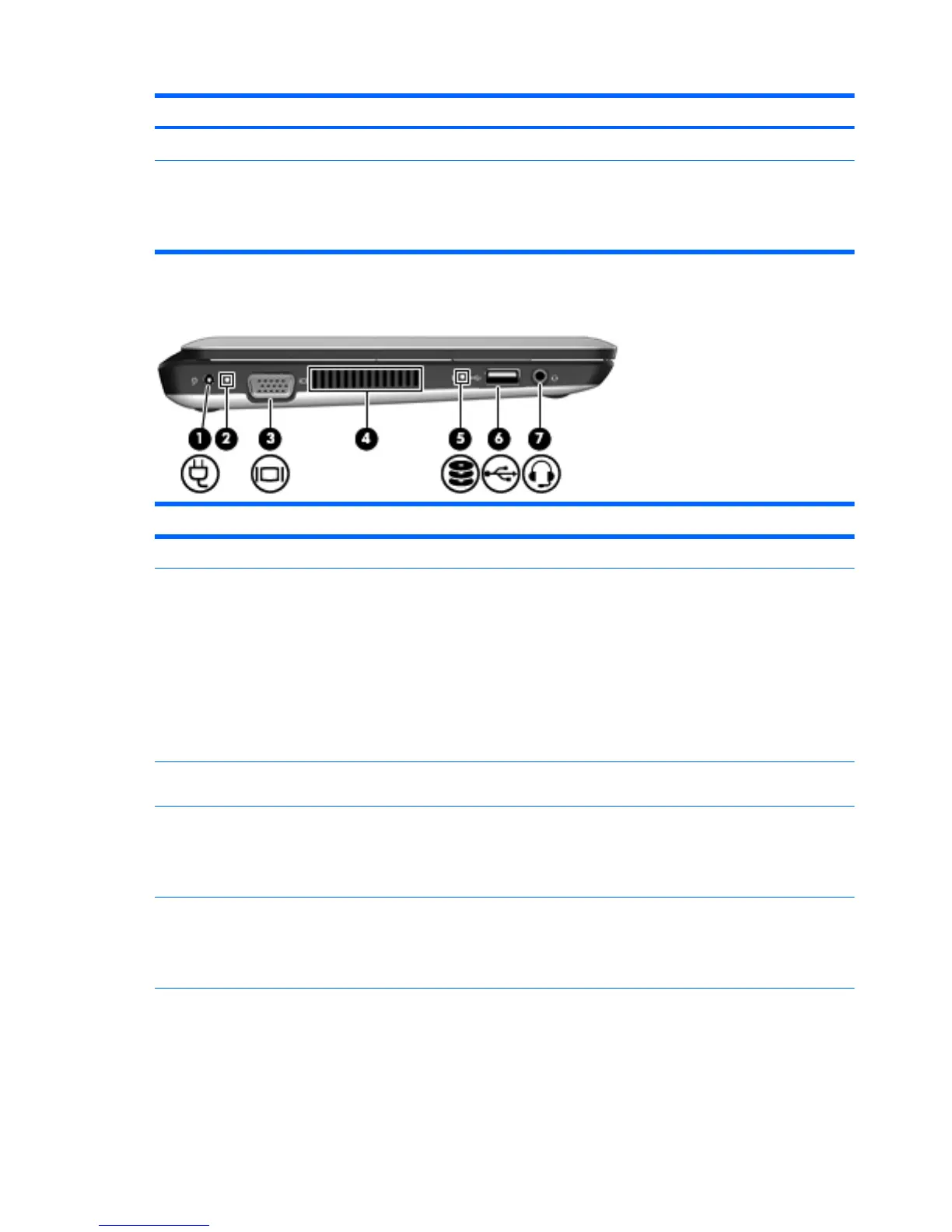

Left-side components
item Component Description
(1) Power connector Connects an AC adapter.
(2) Battery light
●
Off: The computer is running on battery power.
● Blinking white: The battery has reached a low
battery level, a critical battery level, or there is a
battery error. When the battery reaches a critical
battery level, the battery light begins blinking
rapidly.
●
Amber: A battery is charging.
●
White: The computer is connected to external
power and the battery is fully charged.
(3) External monitor port Connects an optional external display, such as a
monitor or projector, to the computer.
(4) Vent Enables airflow to cool internal components. NOTE: The
computer fan starts up automatically to cool internal
components and prevent overheating. It is normal for
the internal fan to cycle on and off during routine
operation.
(5) Drive light
●
Blinking: The hard drive is being accessed.
● Amber (select models only): HP ProtectSmart Hard
Drive Protection has temporarily parked the hard
drive.
10 Chapter 2 External component identification
