Top cover
Description Spare part number
In black 589676-001
In blue 589688-001
In red 589687-001
In silver 589686-001
Before removing the top cover, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 38).
5. Remove the service cover (see
Service cover on page 40).
6. Remove the keyboard (see
Keyboard on page 49).
Remove the top cover.
1. Turn the computer upside down, with the front toward you.

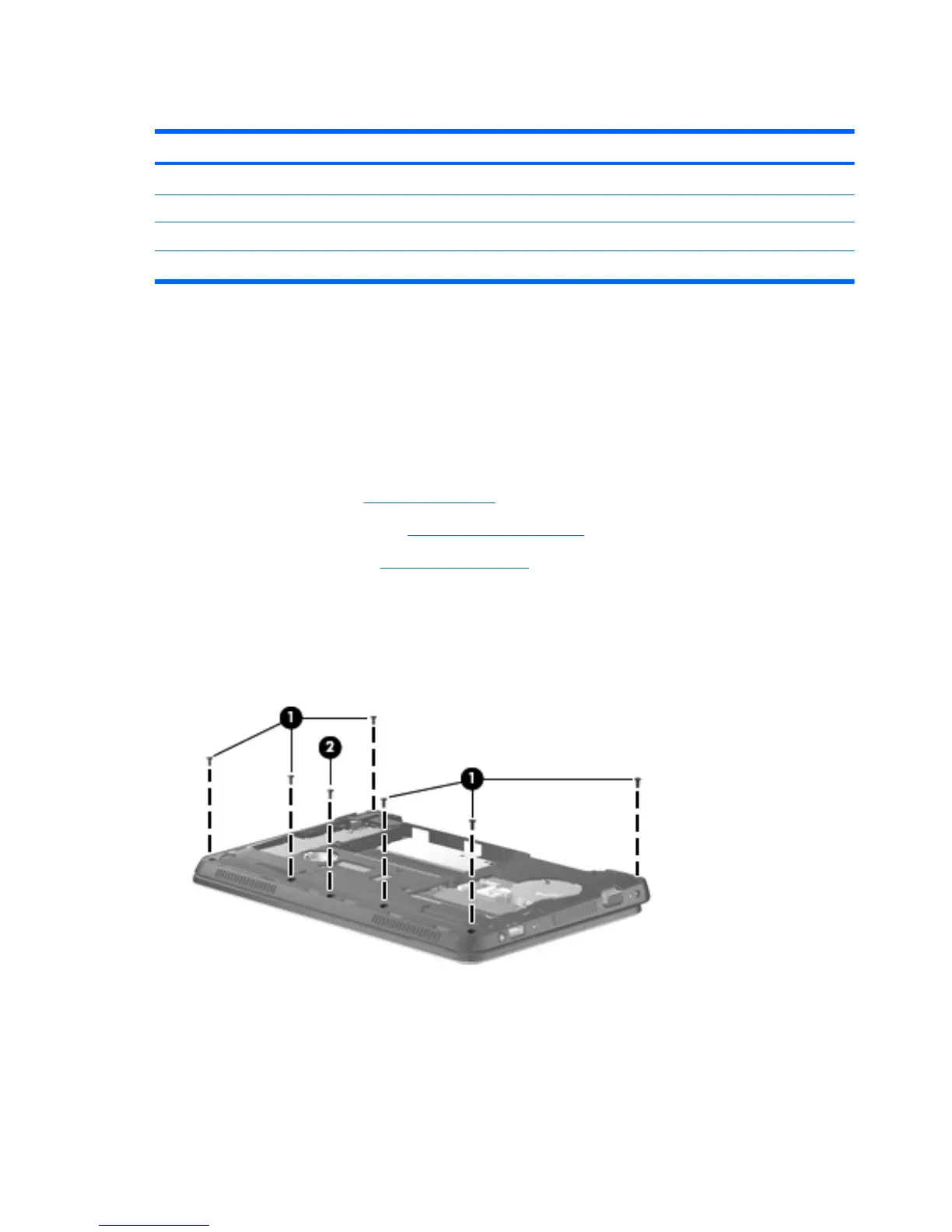

2. Remove the six Phillips PM2.0×6.0 screws (1) and the Phillips PM2.5×4.0 screw (2) that secure
the top cover to the base enclosure.
3. Turn the computer right-side up, with the front toward you.
4. Open the computer as far as it will open.
5. Disconnect the speaker cable (1) from the system board.
52 Chapter 4 Removal and replacement procedures
