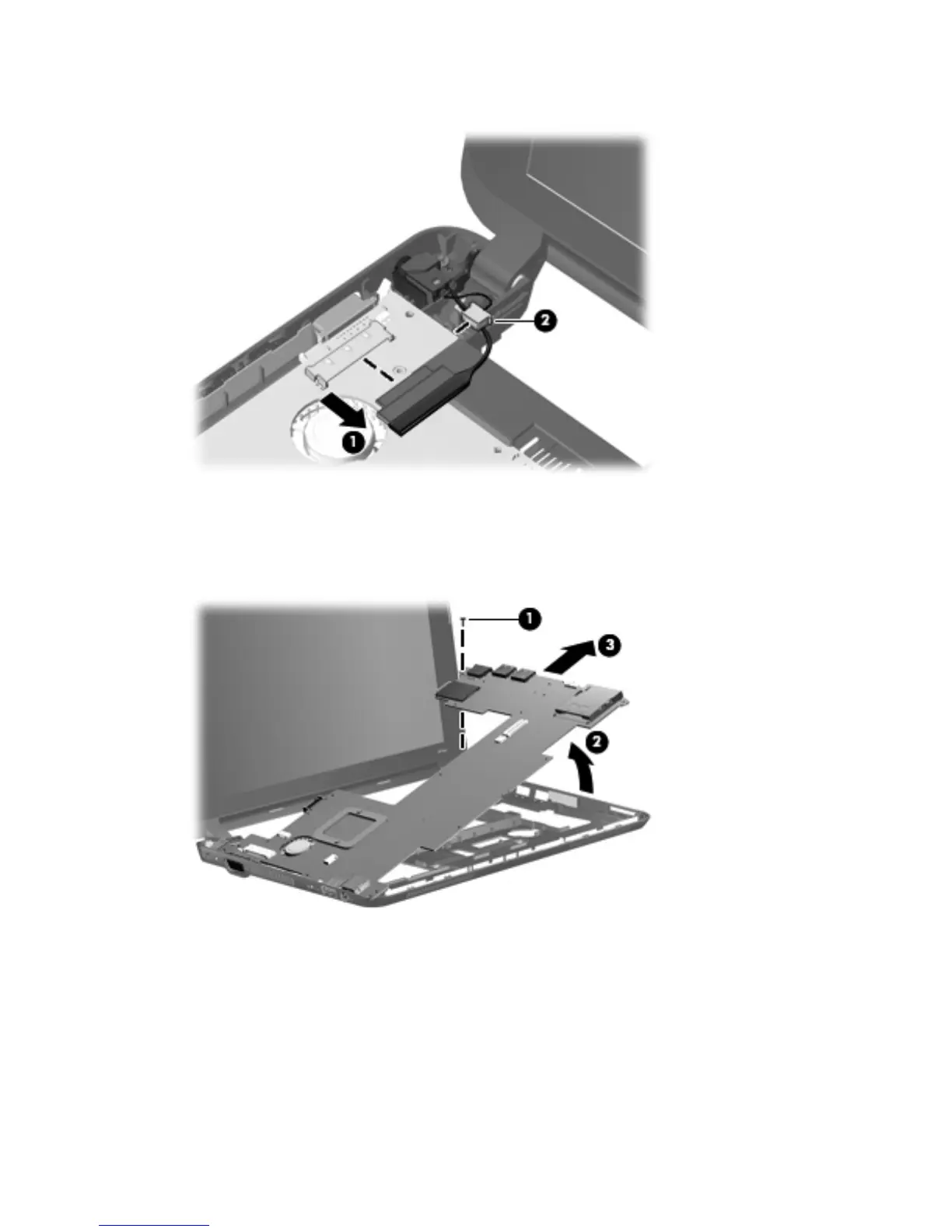

2. Disconnect the power connector cable (2) from the system board.
3. Remove the Phillips PM2.0×4.0 screw (1) that secures the system board to the base enclosure.
4. Lift the right side of the system board (2) until it rests at an angle.
5. Remove the system board (3) by sliding it up and away from the base enclosure.
Reverse the procedure to install the system board.
62 Chapter 4 Removal and replacement procedures
