HP MINI 5103 Maintenance And Service Guide

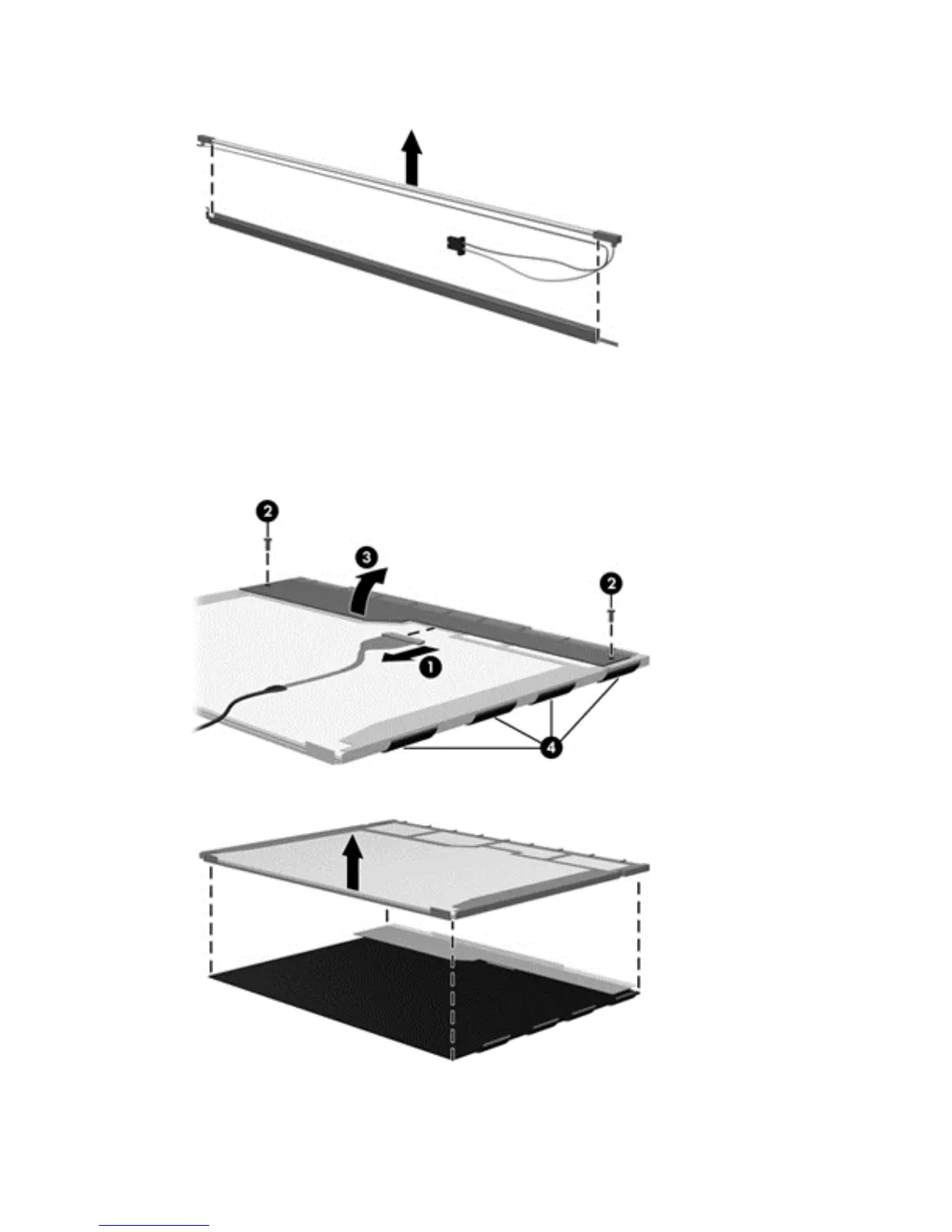

18. Remove the backlight from the backlight frame.
19. Disconnect the display panel cable (1) from the LCD panel.
20. Remove the screws (2) that secure the LCD panel to the display rear panel.
21. Release the LCD panel (3) from the display rear panel.
22. Release the tape (4) that secures the LCD panel to the display rear panel.
23. Remove the LCD panel.
24. Recycle the LCD panel and backlight.
126 Chapter 10 Recycling

HP MINI 5103 Specifications

General

Graphics	Intel GMA 3150
Webcam	Integrated 2 MP webcam
Processor	Intel Atom N455 (1.66 GHz), Intel Atom N475 (1.83 GHz)
Display	10.1-inch diagonal LED-backlit HD (1366 x 768)
RAM	Up to 2 GB DDR3
Storage	160 GB HDD
Operating System	Windows 7 Starter
Battery	3-cell or 6-cell Lithium-Ion battery
Weight	2.64 lbs (1.2 kg)
Dimensions	10.3 x 7.1 x 0.9 inches
Wireless	802.11b/g/n
Ports	3 x USB 2.0, VGA
Card Reader	SD/MMC
Keyboard	95% full-size
