RJ-45 board with bracket
Description Spare part number
RJ-45 board with bracket L14386-001
Before removing the RJ-45 board and bracket, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 33).
5. Disconnect the battery cable from the system board (see Battery on page 46).

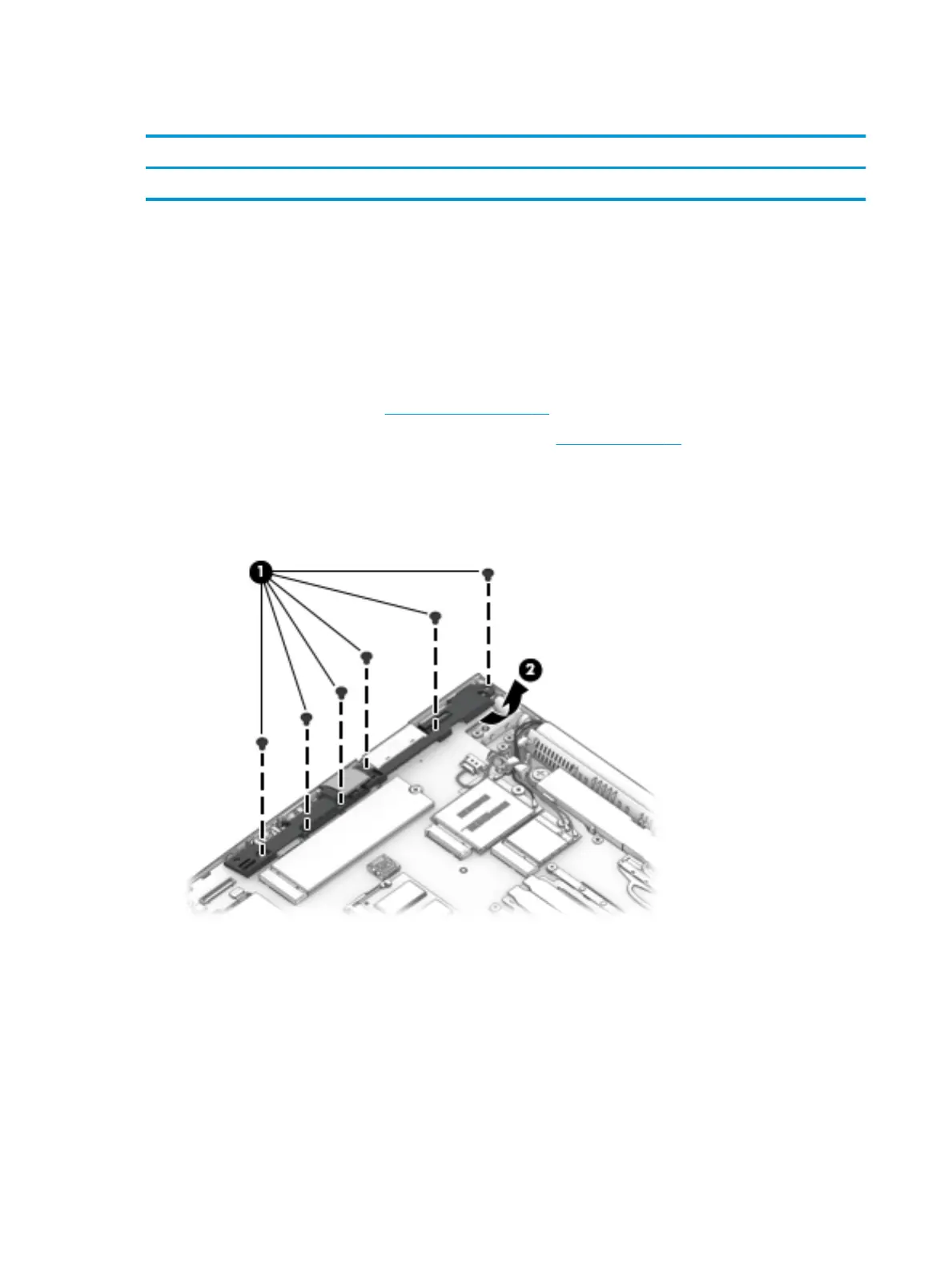

Remove the RJ-45 board and bracket:
1. Remove the six Phillips M2.5×5.0 screws (1) that secure the assembly to the computer.
2. Rotate the assembly out of the computer (2).
Reverse this procedure to install the RJ-45 assembly.
52 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
