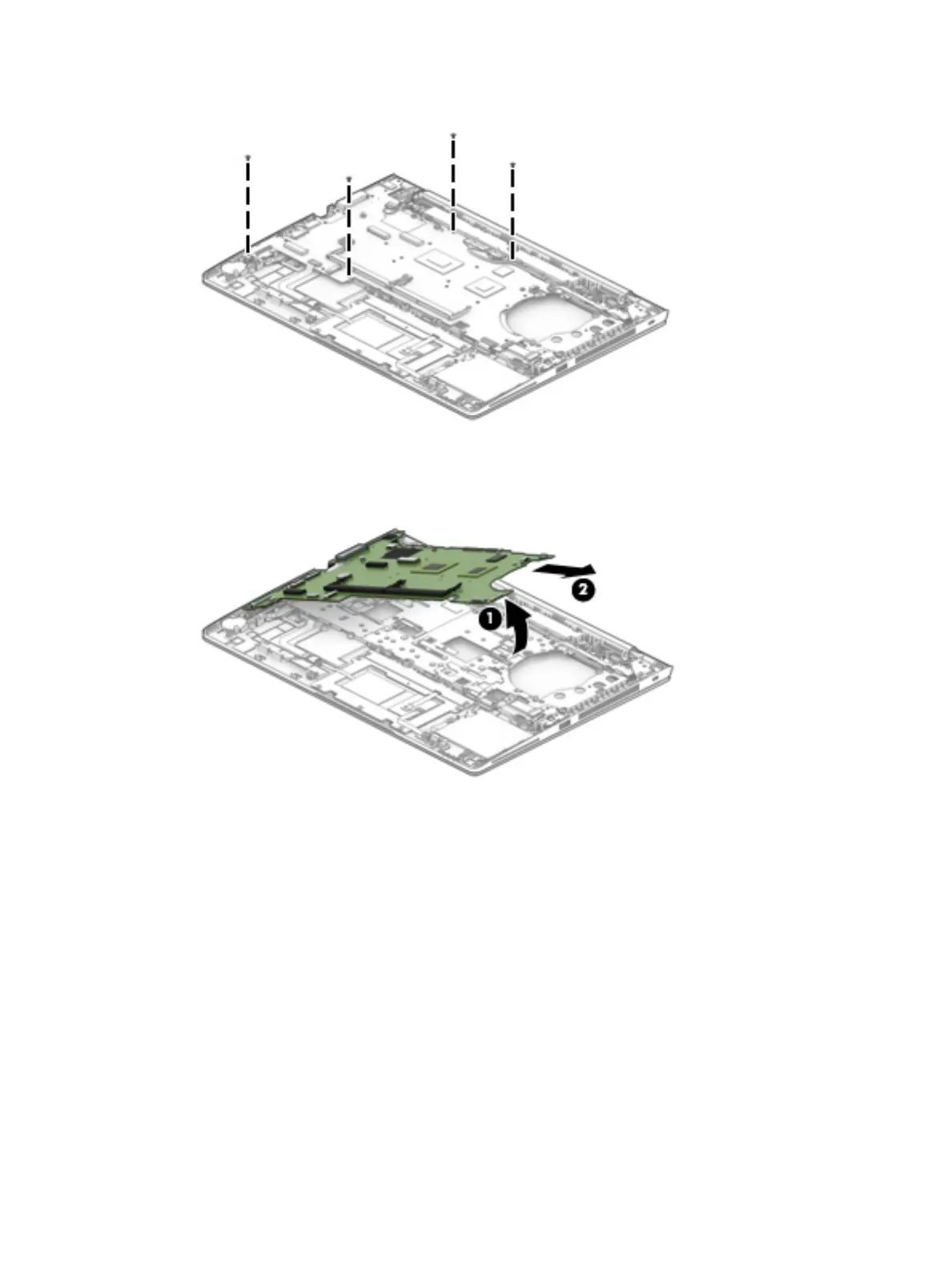

5. Remove the four Phillips M2.5×3.0 screws that secure the system board to the computer.
6. Lift the right side of the system board up at an angle (1).
7. Pull the system board up and toward the right to disengage the connectors from the left side of the
computer, and then remove the system board (2).
Reverse this procedure to install the system board.
Component replacement procedures 65
