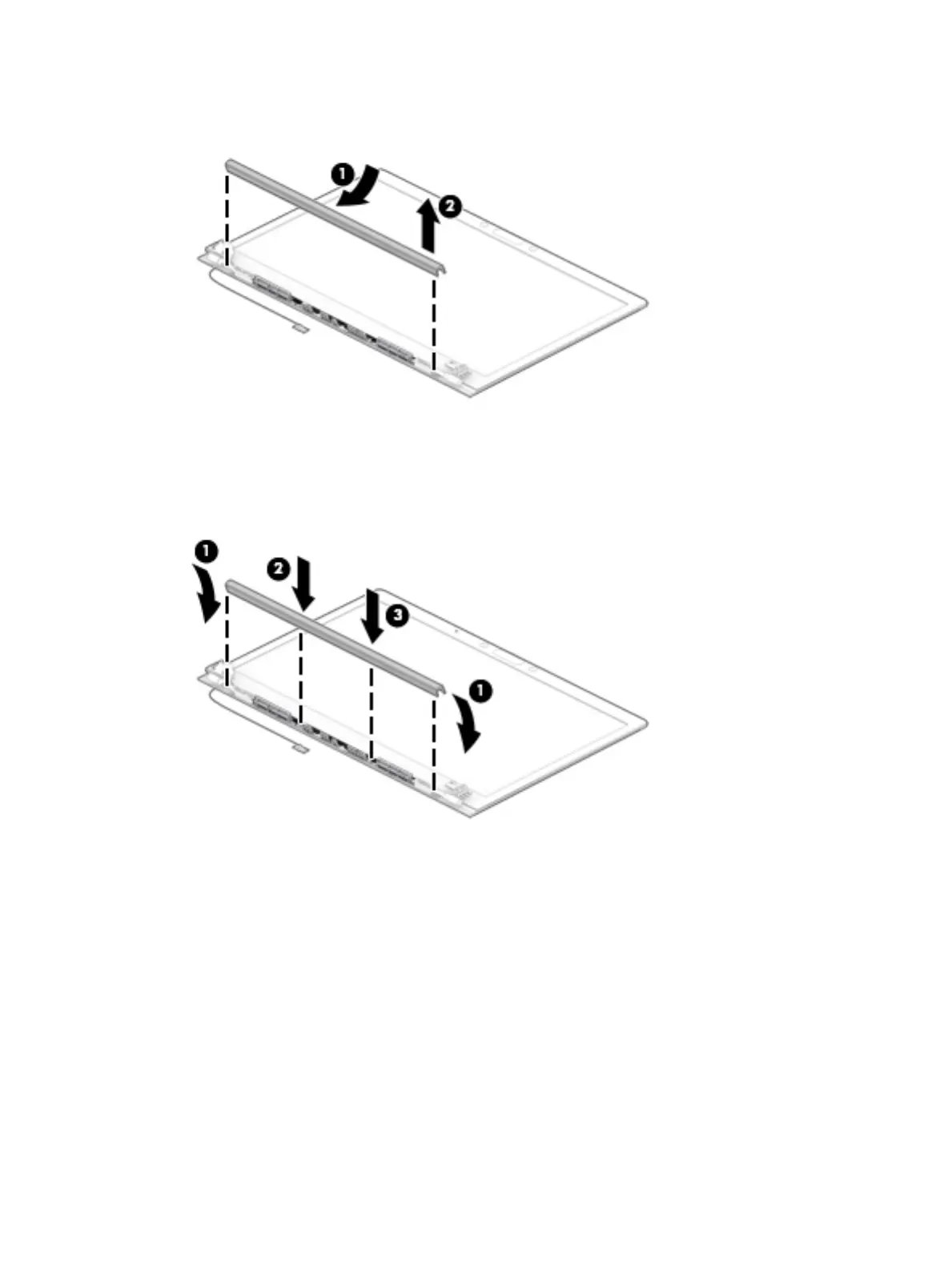

8. To remove the display hinge cover, rotate top of hinge cover away from display enclosure to disengage
the tabs (1), and then pull the cover o the enclosure (2).
The display hinge cover (for touch displays) is available using spare part number L14375-001. The
display hinge cover (for non-touch displays) is available using spare part number L14376-001.
When installing the hinge cover, make sure all cables are routed correctly under the hinge cover and the
hooks on the end of the cover are aligned correctly with the snaps on the bottom of the display (1).
Press the left (2), and then right (3) middle sections of the hinge cover until it snaps into place.
9. To remove the display bezel, ex the top (1) of the bezel, the inside edges of the left and right sides (2),
and then the bottom (3) of the bezel until it disengages from the display enclosure.
68 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
