a. HD camera models

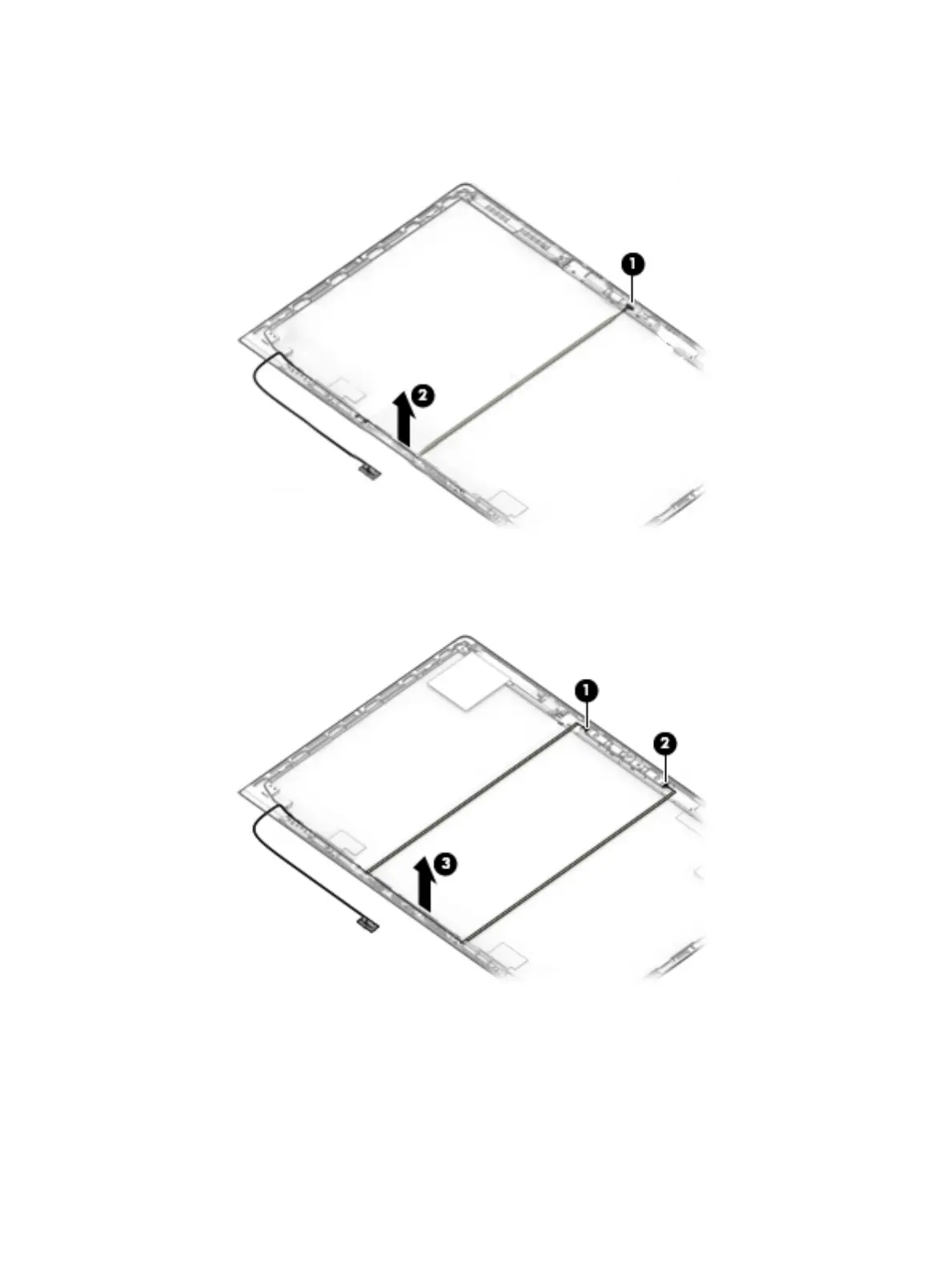

Disconnect the cable from the HD camera (1), and then remove the cable from the display
enclosure (2).
b. IR camera models
Disconnect the cable from the left (1) and right (2) sides of the IR camera, and then remove the
cable from the display enclosure (3).
The camera cable is available in the Cable Kit using spare part number L14370-001.
Component replacement procedures 73
