The HD camera module is available as spare part number L62742-001. The microphone module is
available as spare part number L62744-001.

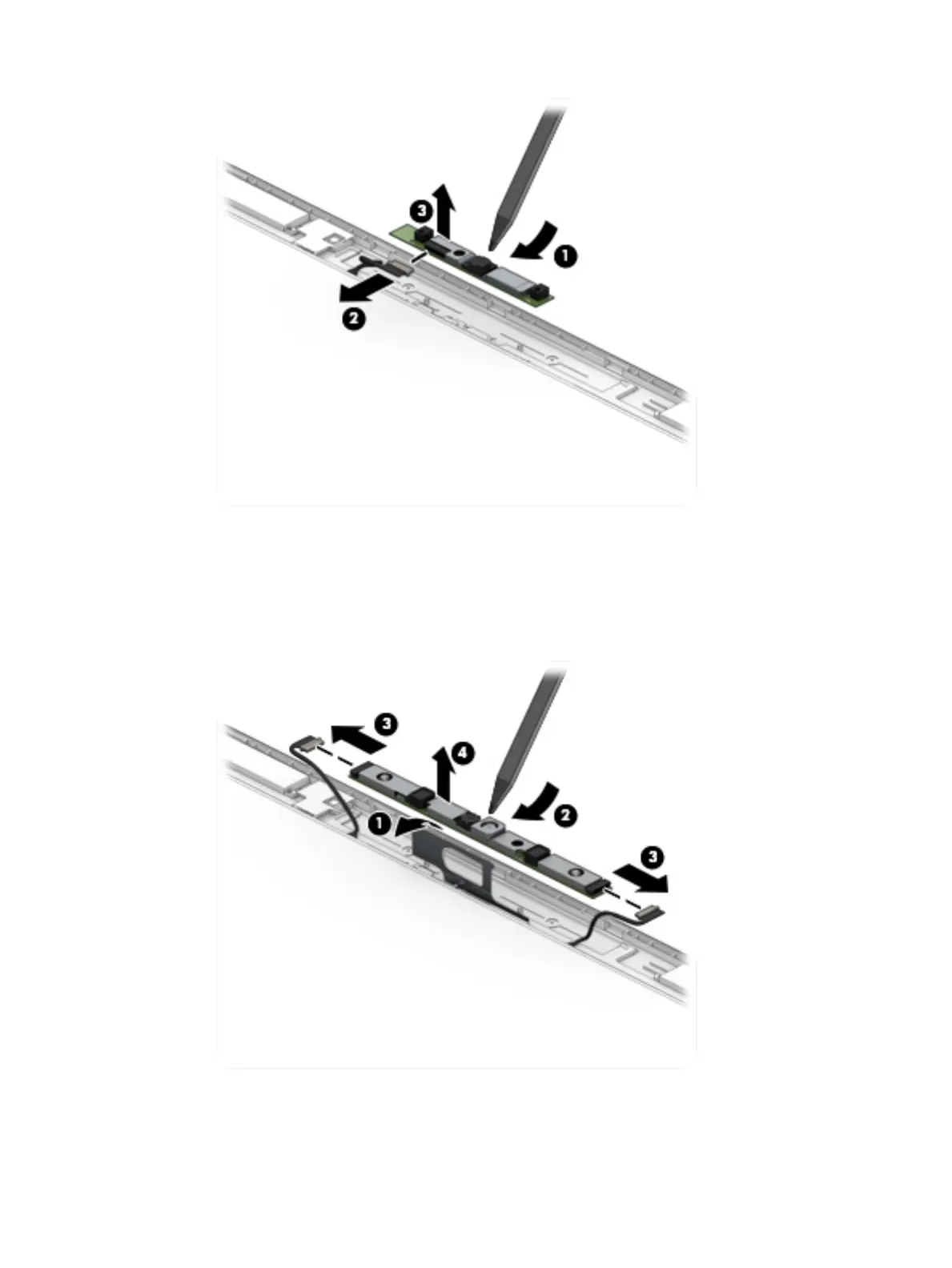

b. IR camera
Remove the tape from the module (1), lift upward to release the module from the adhesive on the
display enclosure (2), disconnect the cables from the left and right sides of the module (3), and
then remove the camera module from the display (4).
The IR camera module is available as spare part number L64702-001.
68 Chapter 6 Removal and replacement procedures for authorized service provider parts

HP mt45 Specifications

General

Battery	HP Long Life 3-cell, 50 Wh Li-ion
Processor	AMD Ryzen 3 PRO 3300U
Graphics	AMD Radeon Vega Graphics
Display	14" diagonal FHD IPS anti-glare WLED-backlit (1920 x 1080)
Memory	8 GB DDR4-2400 SDRAM
Ports	1 USB 3.1 Type-C, 2 USB 3.1 Gen 1, 1 HDMI 2.0, 1 RJ-45, 1 headphone/microphone combo
Wireless	Intel Dual Band Wireless-AC 9260 802.11a/b/g/n/ac (2x2) Wi-Fi and Bluetooth 5 Combo
Operating System	Windows 10 IoT Enterprise
