HP mt45 User Manual

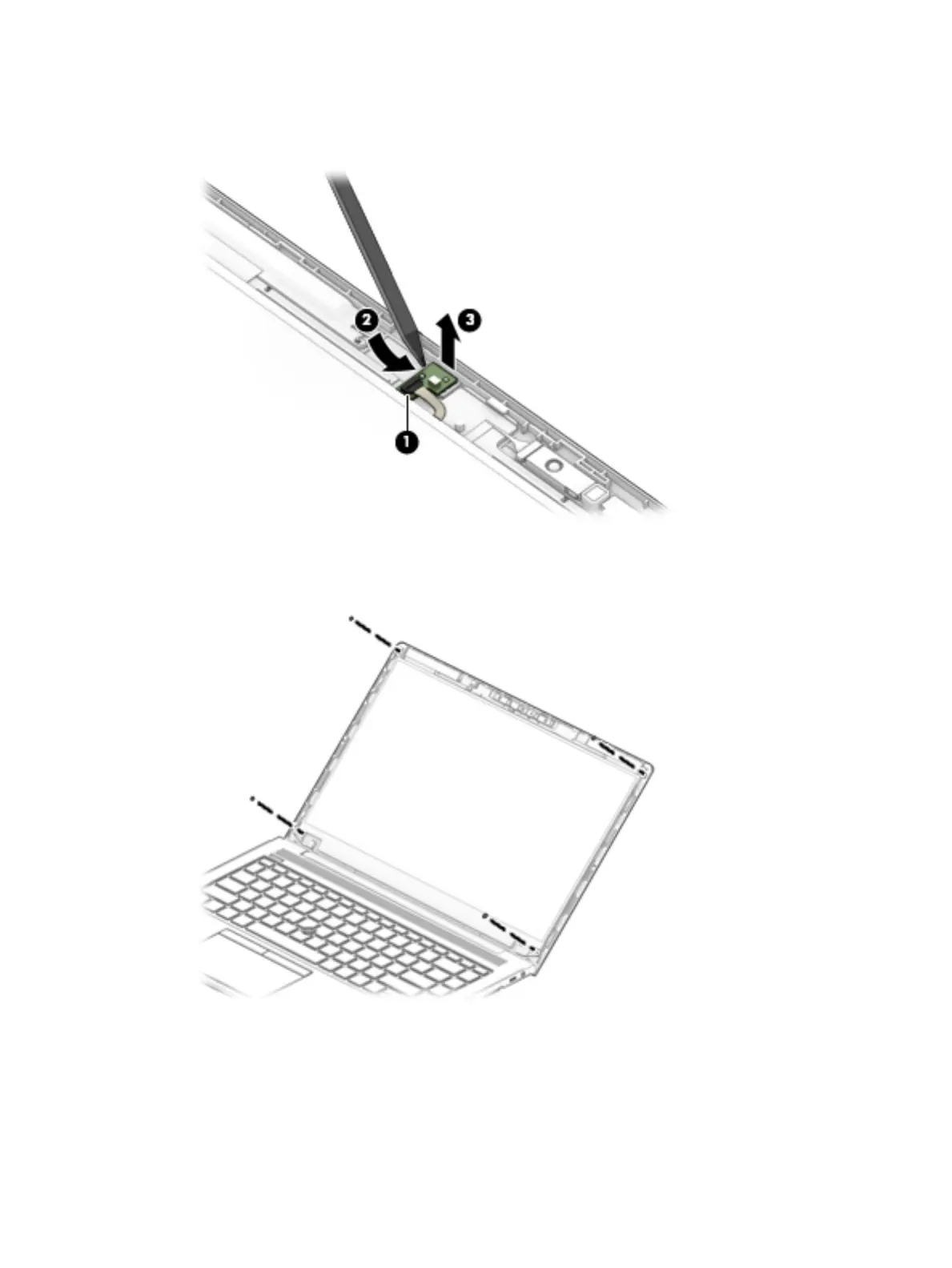

12. If it is necessary to remove the ambient light sensor board, disconnect the cable from the board (1), lift
upward to release the board from the adhesive on the display enclosure (2), and then remove the board
from the display (3).
The ambient light sensor board is available as spare part number L62745-001.
13. If it is necessary to remove the display panel from the enclosure, remove the four Phillips M2.0 × 2.0
screws that secure the panel to the display enclosure.
14. Rotate the display panel over onto the keyboard (1).
Component replacement procedures 69

HP mt45 Specifications

General

Battery	HP Long Life 3-cell, 50 Wh Li-ion
Processor	AMD Ryzen 3 PRO 3300U
Graphics	AMD Radeon Vega Graphics
Display	14" diagonal FHD IPS anti-glare WLED-backlit (1920 x 1080)
Memory	8 GB DDR4-2400 SDRAM
Ports	1 USB 3.1 Type-C, 2 USB 3.1 Gen 1, 1 HDMI 2.0, 1 RJ-45, 1 headphone/microphone combo
Wireless	Intel Dual Band Wireless-AC 9260 802.11a/b/g/n/ac (2x2) Wi-Fi and Bluetooth 5 Combo
Operating System	Windows 10 IoT Enterprise
