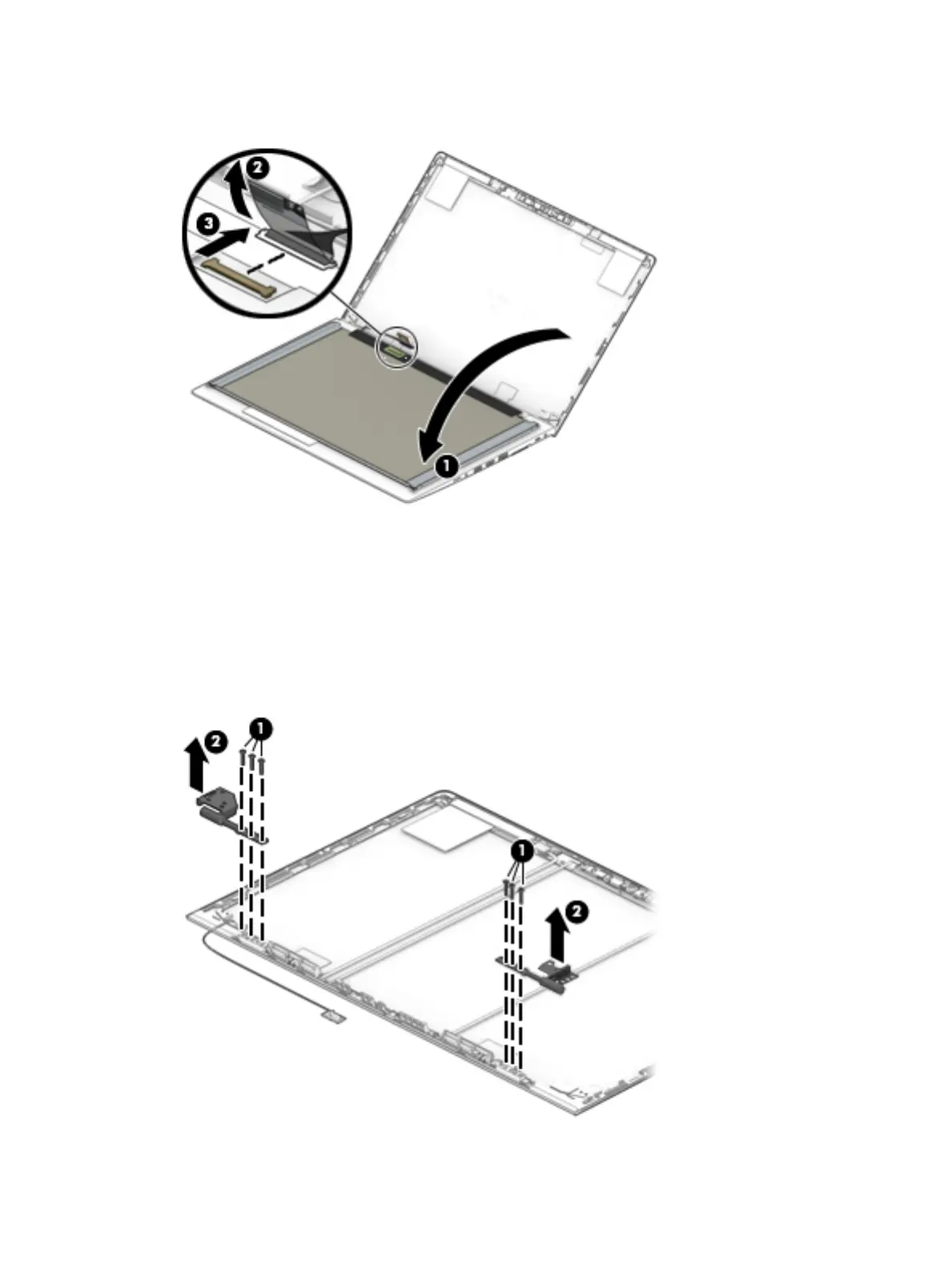

15. On the back of the display panel, lift the tape from the connector (2), and then disconnect the display
cable from the rear of the panel (3).
The raw display panel is available using the following spare part numbers:
FHD panel, non-touch, 250 nits: L62773-001
FHD panel, non-touch, privacy: L62774-001
FHD touch-on panel (TOP), privacy, 1000 nits: L62771-001
16. If it is necessary to replace the display hinges, remove the three Phillips M2.5 × 11.0 screws that secure
each hinge (1), and then remove the hinges from the display enclosure (2).
Display hinges are available as spare part number L14376-001.
70 Chapter 6 Removal and replacement procedures for authorized service provider parts

HP mt45 Specifications

General

Battery	HP Long Life 3-cell, 50 Wh Li-ion
Processor	AMD Ryzen 3 PRO 3300U
Graphics	AMD Radeon Vega Graphics
Display	14" diagonal FHD IPS anti-glare WLED-backlit (1920 x 1080)
Memory	8 GB DDR4-2400 SDRAM
Ports	1 USB 3.1 Type-C, 2 USB 3.1 Gen 1, 1 HDMI 2.0, 1 RJ-45, 1 headphone/microphone combo
Wireless	Intel Dual Band Wireless-AC 9260 802.11a/b/g/n/ac (2x2) Wi-Fi and Bluetooth 5 Combo
Operating System	Windows 10 IoT Enterprise
