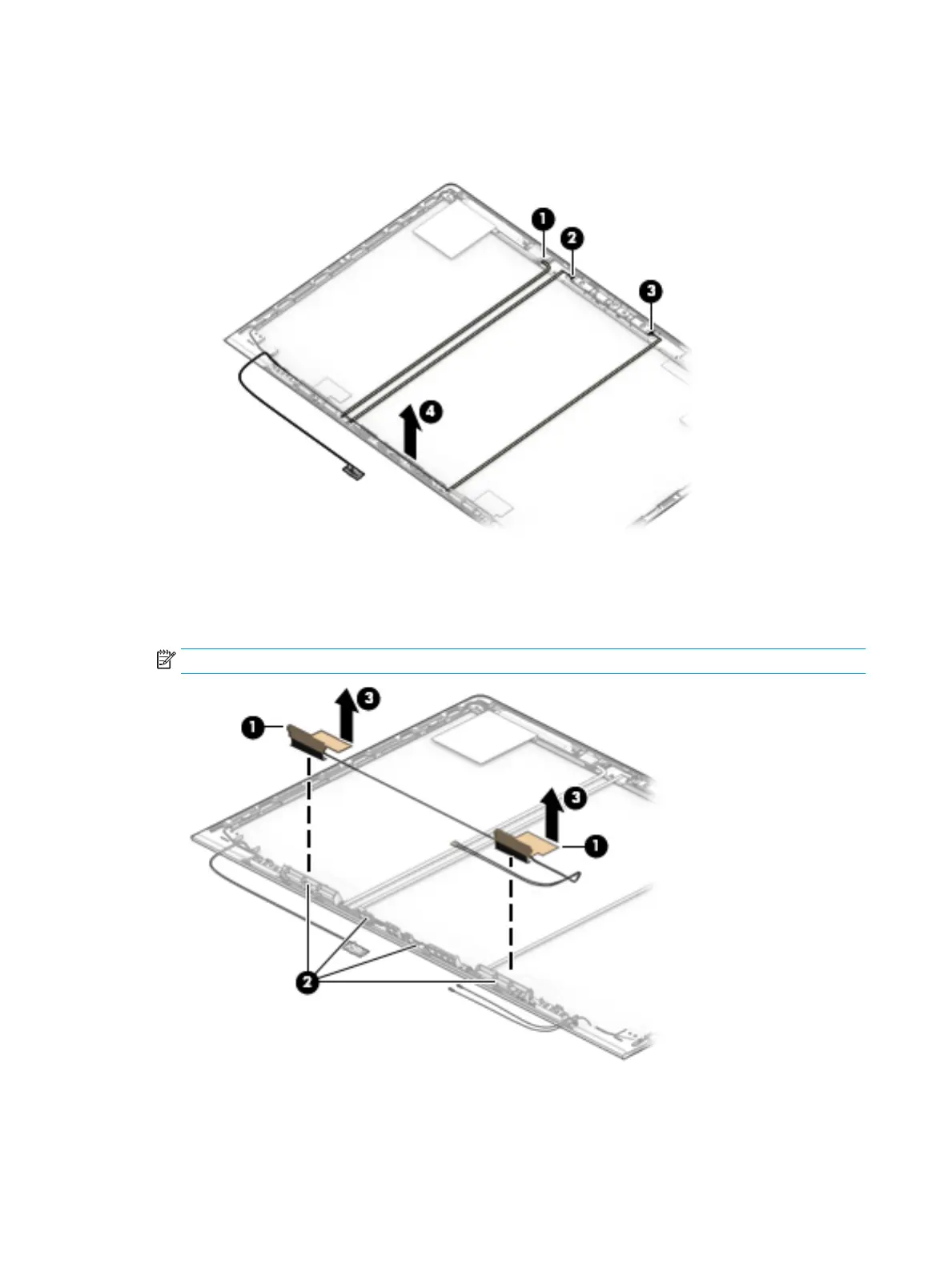

b. IR camera models
Disconnect the cable from the ambient light sensor board (1) from the left (2) and right (3) sides of
the IR camera. Then remove the cable from the display enclosure (4).
The camera cable is available in the Cable Kit as spare part number L64668-001.
19. If it is necessary to replace the WLAN antenna cables, peel the antennas from the top of the display
enclosure (1), remove the antenna cables from the routing path on the bottom of the display enclosure
(2), and then remove the antenna cables (3).
NOTE: The WLAN antennas are available as spare parts with the display enclosure.
72 Chapter 6 Removal and replacement procedures for authorized service provider parts
