Front Bezel
1. Prepare the computer for disassembly (Preparation for Disassembly on page 32).
2. Remove the access panel (
Access Panel on page 32).

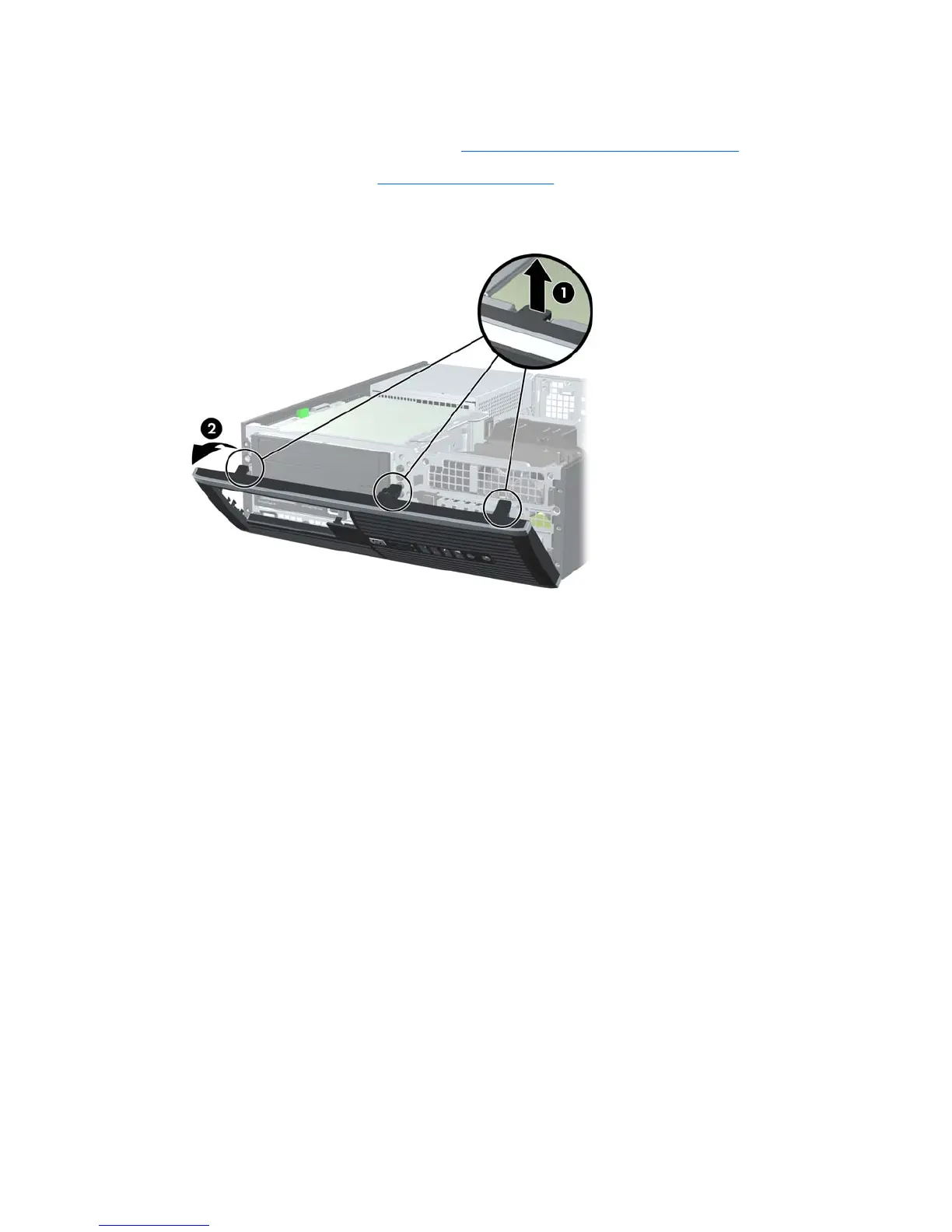

3. Lift up the three tabs on the side of the bezel (1), then rotate the bezel off the chassis (2).
Figure 5-2 Removing the Front Bezel
To install the front bezel, reverse the removal procedure.
34 Chapter 5 Removal and Replacement Procedures
