HP MultiSeat t100 - Thin Client

4. Rotate the power supply to its upright position. The hard drive is located beneath the power
supply.

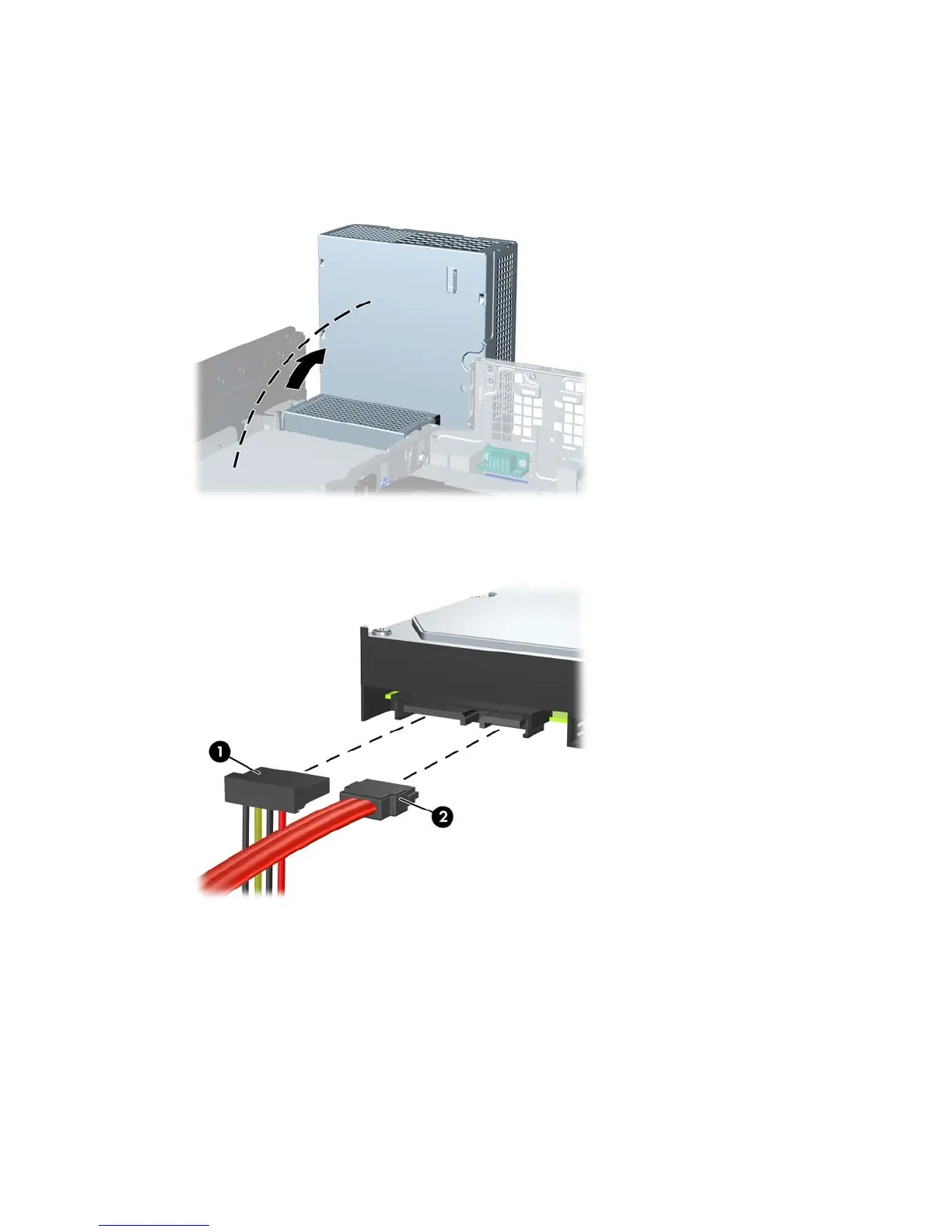

Figure 5-32 Raising the Power Supply
5. Disconnect the power cable (1) and data cable (2) from the back of the hard drive.
Figure 5-33 Disconnecting the Hard Drive Power Cable and Data Cable
60 Chapter 5 Removal and Replacement Procedures
