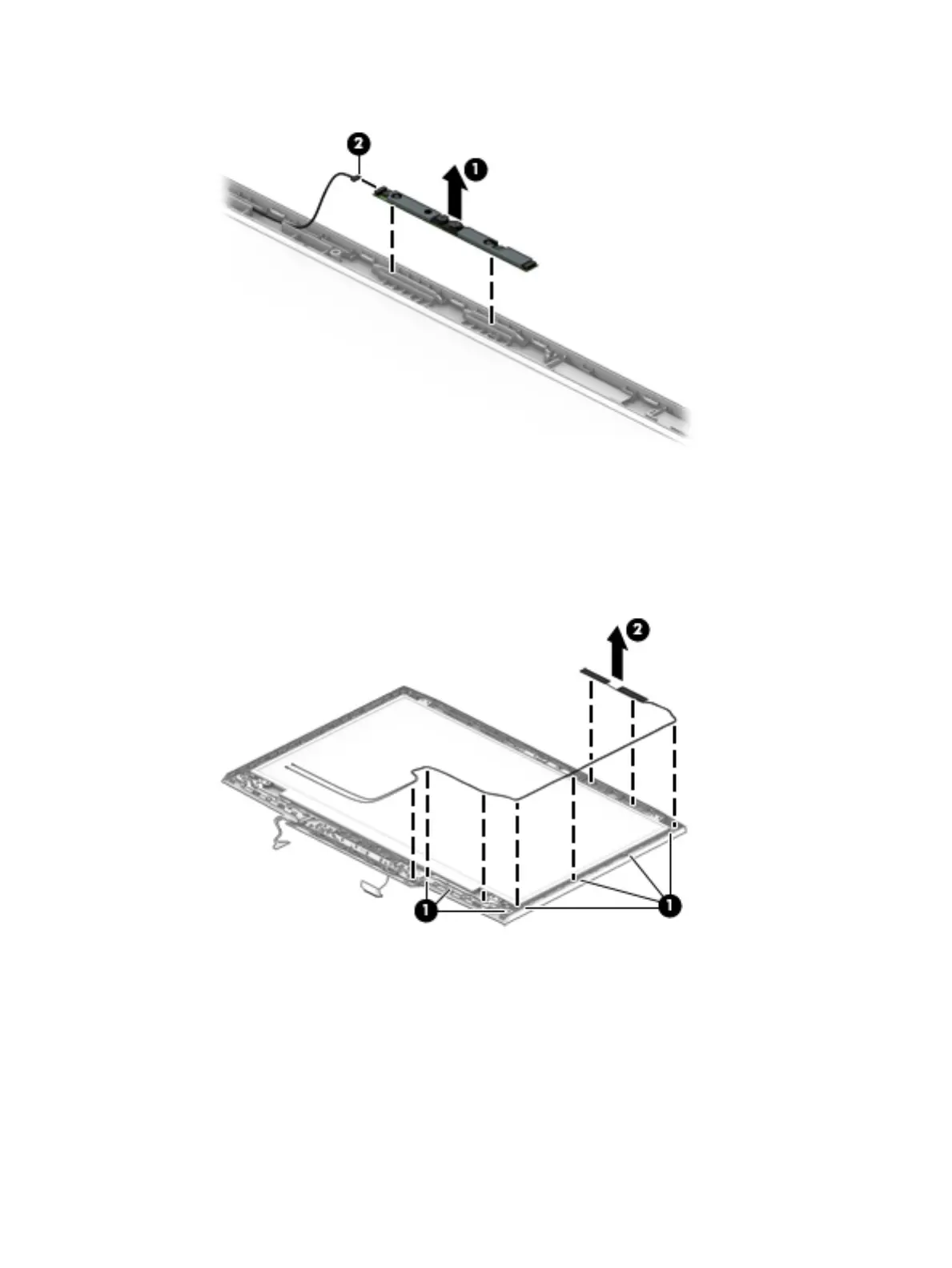

b. Disconnect the cable (2) and remove the camera module.
8. If it is necessary to replace the WLAN antennas:
a. Release the WLAN antenna cable from the routing path (1) of the display enclosure.
b. Carefully peel back the metallic tape (2) to release the wireless antenna transceivers from the
display enclosure.
c. Remove the WLAN antenna cable from the display enclosure.
9. If it is necessary to replace the display cable:
a. Release the cable from the routing path (1) along the display enclosure.
68 Chapter 6 Removal and replacement procedures for authorized service provider parts
