2) Use a hot air gun to melt the solder on the pins.
3) Lift the HDMI 1 connector from the circuit board
4) Place the new component on the circuit board. Be sure that it matches the footprint.
5) Solder the new component.
HDMI 2 connector CN503

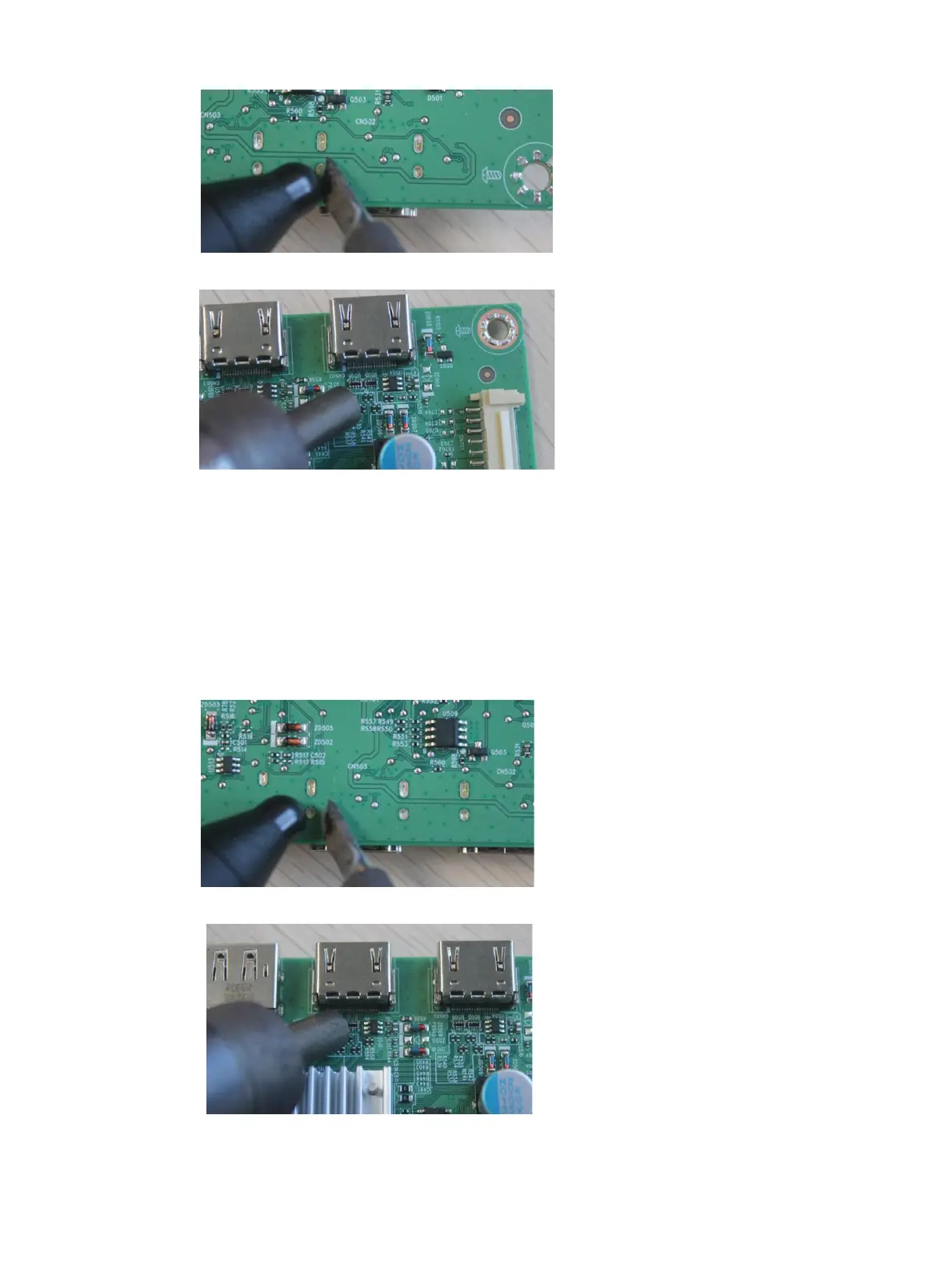

Repair the HDMI connector:
1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
2) Use a hot air gun to melt the solder on the pins.
3) Lift the HDMI 2 connector from the circuit board.
4) Place the new component on the circuit board. Be sure that it matches the footprint.
