USB Type-C connector CN701
Repair the Type-C connector:

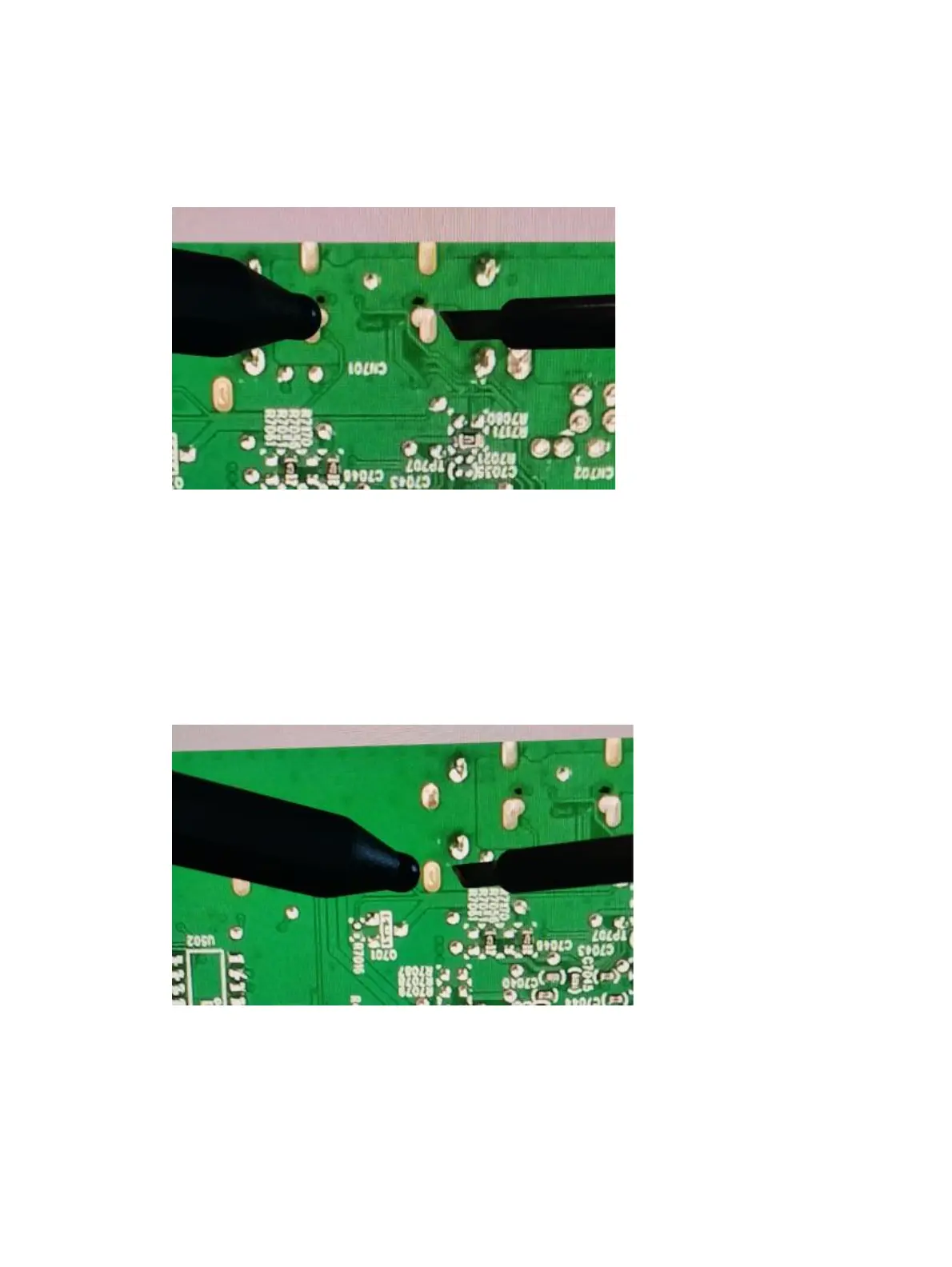

1） Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
2) Lift the TYPE-C connector from the circuit board.
3) Place the new component on the circuit board. Be sure that it matches the circuit board footprint.
4) Solder the new component.
USB UP connector CN702
Repair the USB up connector:
1） Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
2) Lift the USB up connector from the circuit board.
3) Place the new component on the circuit board. Be sure that it matches the circuit board footprint.
4) Solder the new component.
