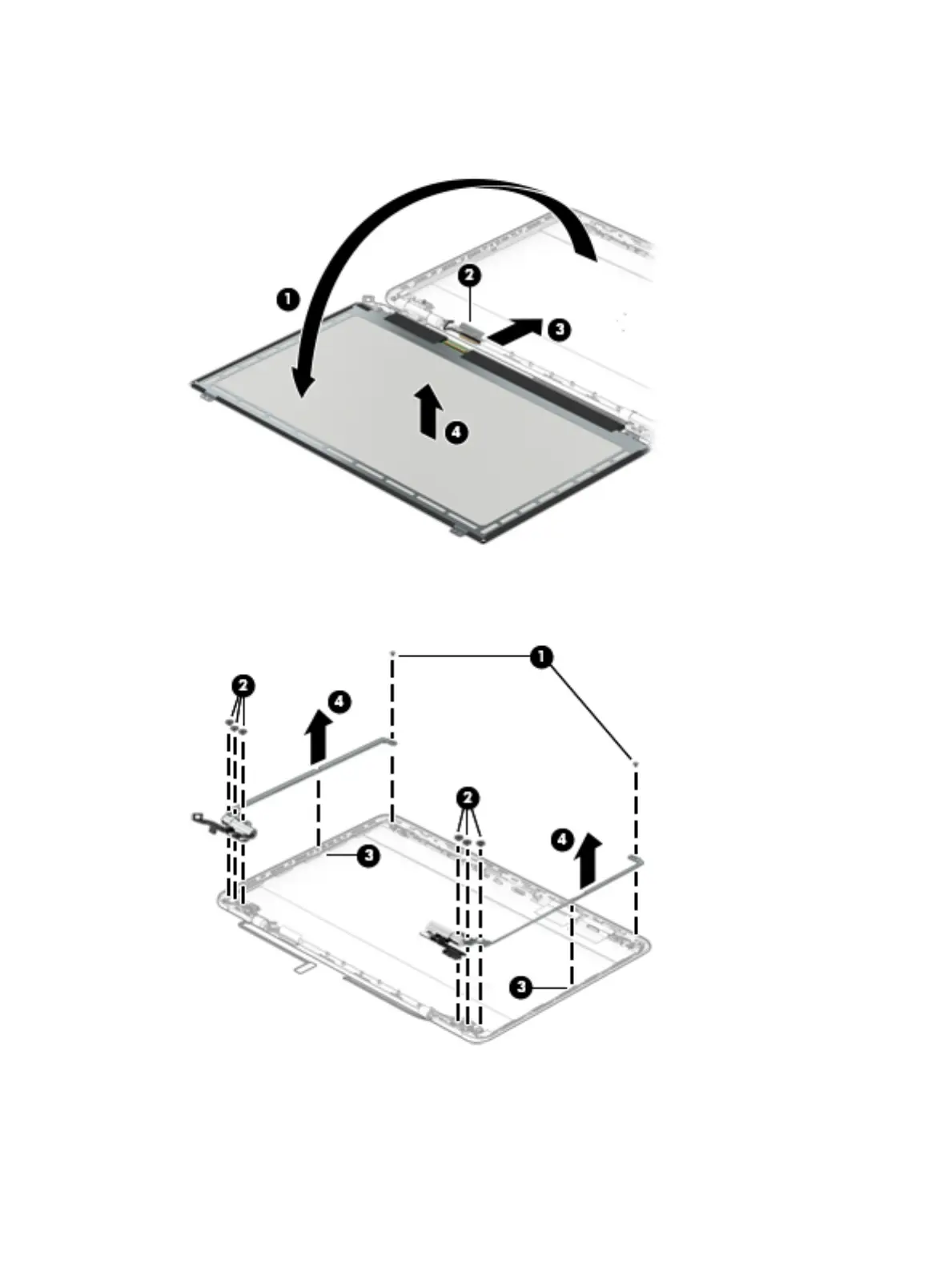

3. Rotate the display panel (1), disconnect the display cable (2) from the display panel (3), and then lift the
display panel (4) to remove it.
4. If it is necessary to replace the hinge brackets, remove the Phillips 2.5x6.0 screw from the top of each
hinge bracket (1) and the 3 Phillips 2.5x6.0 screws from each hinge (2), remove the hinge brackets from
the back cover (3), and then lift the hinge brackets (4) to remove them.
62 Chapter 5 Removal and replacement procedures for authorized service provider parts
