HP Omen X Hardware Reference Guide

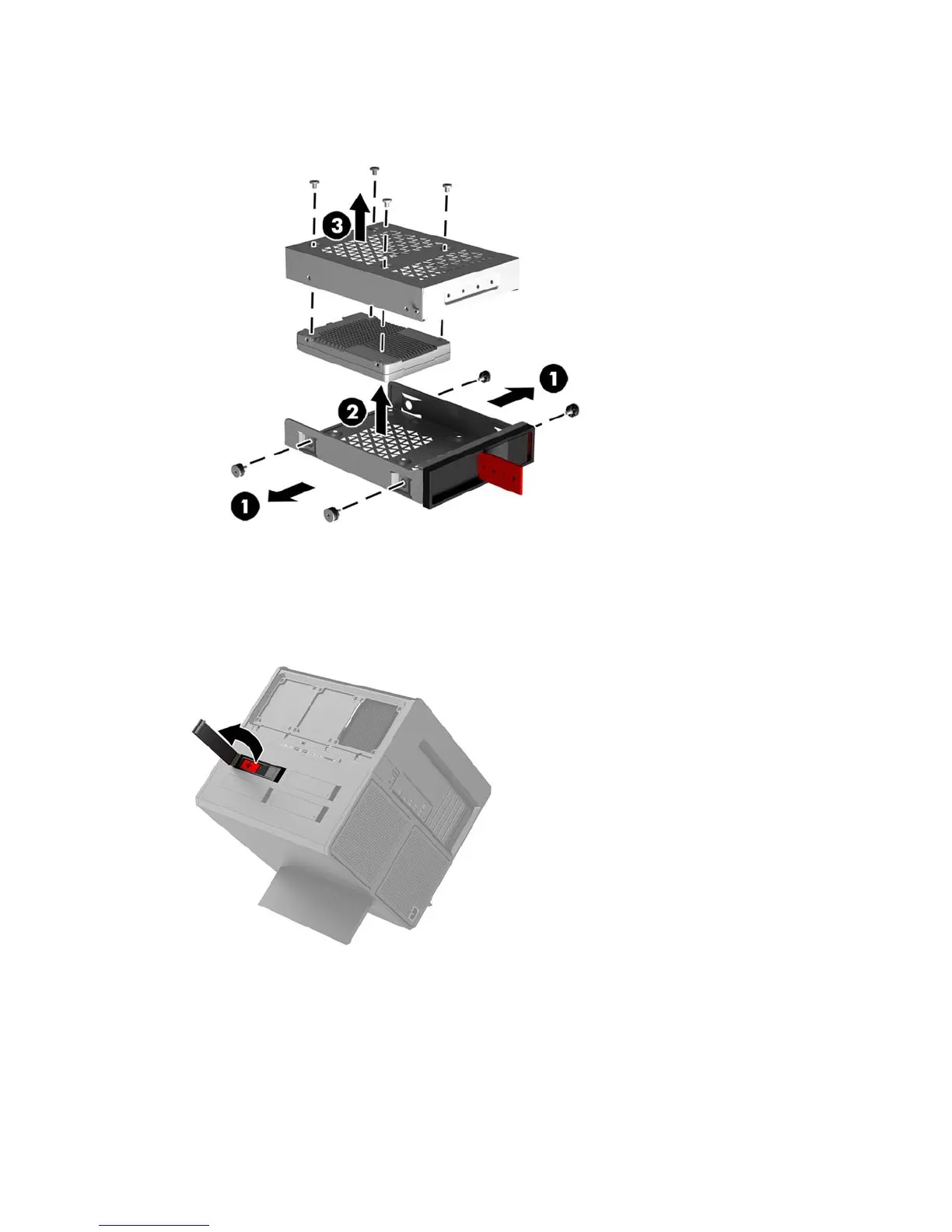

c. U.2 drive: Remove the four mounting screws that secure the drive adapter bracket to the drive
cage (1). Lift the adapter bracket out of the drive cage (2), and remove the four screws that secure
the drive to the adapter bracket (3). Then remove the drive from the adapter bracket.
Drive security
You can insert the hard drive pull tab into the drive cage to prevent unauthorized removal of the drive.
1. Pull up on the right side of the hard drive door, and then rotate the door to the left. Note that the door
remains connected to the case.
16 Chapter 2 Hardware upgrades

HP Omen X Specifications

General

Operating System	Windows 10
Battery	70 Wh
Refresh Rate	144 Hz
Resolution	1920 x 1080
Processor	Intel Core i7-9750H
Graphics	NVIDIA GeForce RTX 2070
