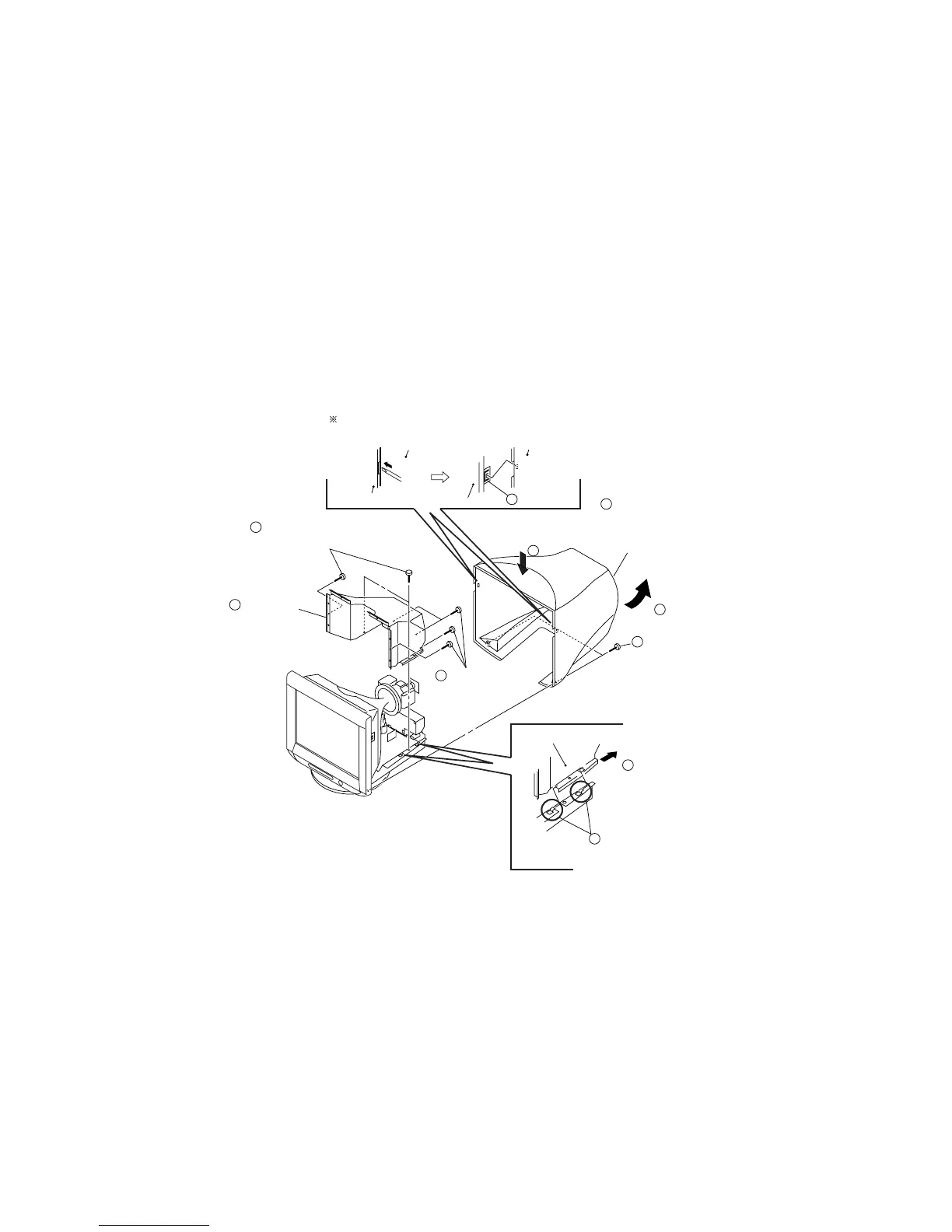

1
Two screws
(+BVTP 4 x 16)
6
Slide the EMI shield in the direction
of arrow C and remove four claws.
7
EMI shield
4
Four screws
(+BVTT 4 x 8)
5
Three screws
(+BVTT 4 x 8)
2
Two claws
Bezel assembly
Bezel assembly
EMI shield
Cabinet
Cabinet
Push in the tip of a screwdriver
about 10mm to unlock the claw.
B
A
C
3
Push the upper side of the cabinet
in the direction of arrow A, disconnect claws,
then remove the cabinet
lifting it up in the direction of arrow B.
To Next Page
