537488-001 — Removing and Replacing a Hard Disk Drive 3

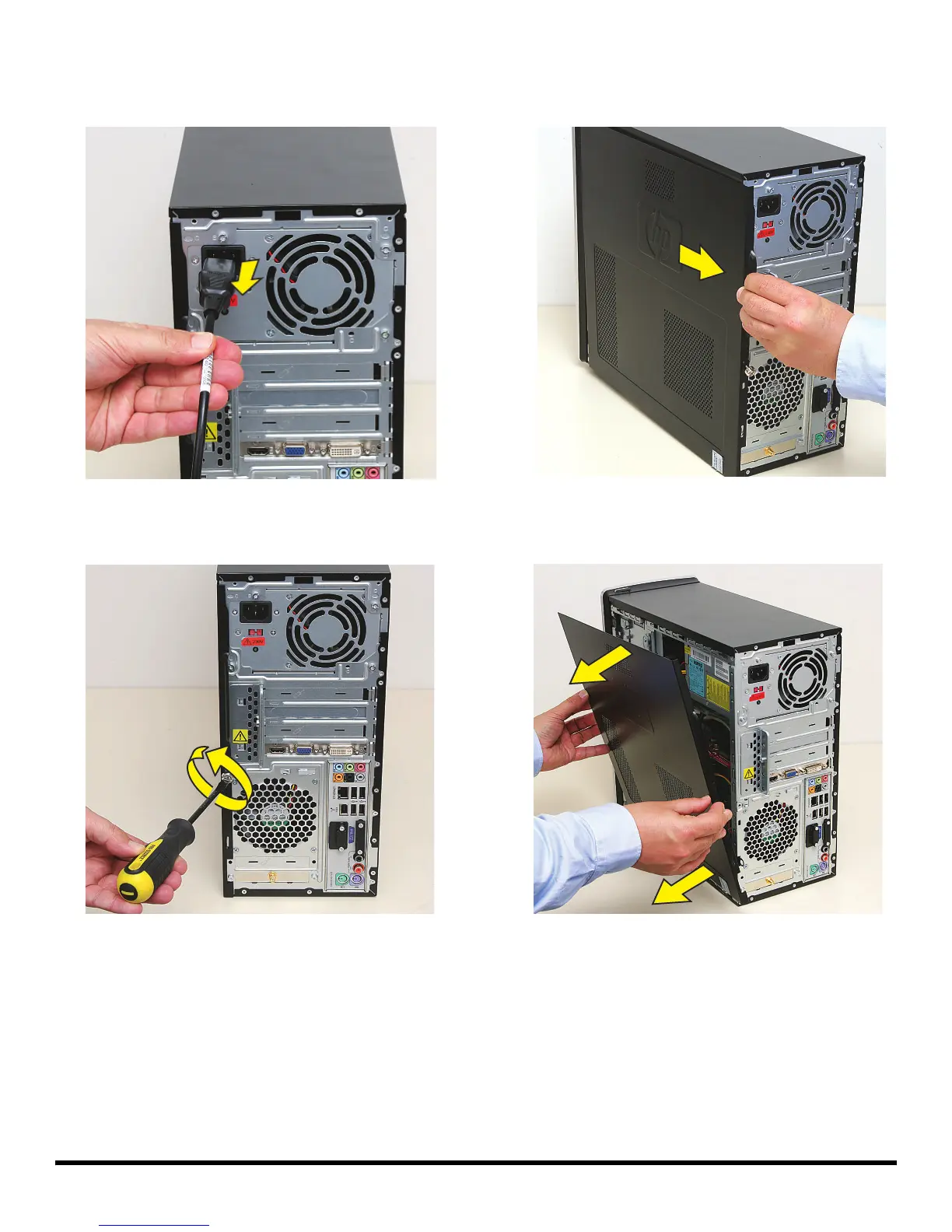

3 Disconnect all peripherals and cables from the front
and the back of the computer. Disconnect the power
cord last.
4 Loosen the side panel thumbscrew on the back of the
computer.
5 Grasp the handle, and pull the side panel about
2.5 cm (1 inch) toward the back of the computer to
release it.
6 Tilt out the top of the side panel, and then lift the panel
from the computer.
--
