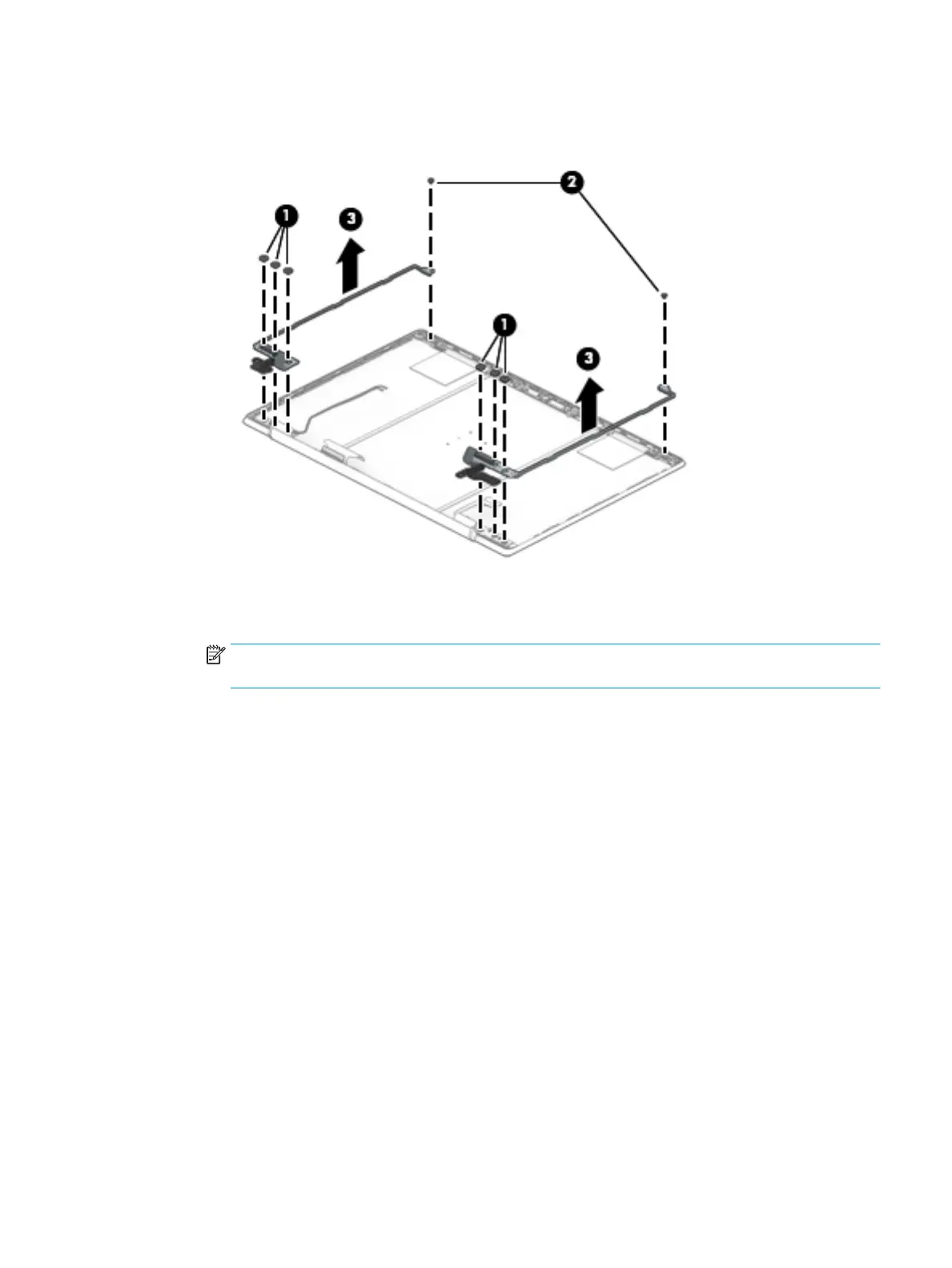

c. Remove the display hinges (3).
The display hinges are available using spare part number L19185-001.
13. If it is necessary to replace the display panel cable:
a. Disconnect the cable from the camera module (1).
NOTE: Cables connect to both sides of IR cameras. A single cable connects to only one side of HD
cameras.
b. Release the cable from the retention clips (2) and routing channel built into the bottom edge of the
display enclosure.
Component replacement procedures 61

HP Pavilion 14 Series Specifications

General

Display Size	14 inches
Display Resolution	1920 x 1080 (Full HD)
Processor	Intel Core i5 or AMD Ryzen 5
RAM	8GB or 16GB
Storage	256 GB / 512 GB / 1 TB SSD (varies by model)
Operating System	Windows 10 / Windows 11
Graphics	AMD Radeon Graphics
Battery Life	Up to 8 hours
Battery	3-cell Li-ion
Ports	USB Type-C, USB Type-A, HDMI, headphone/microphone combo jack
Wireless	Wi-Fi 6
