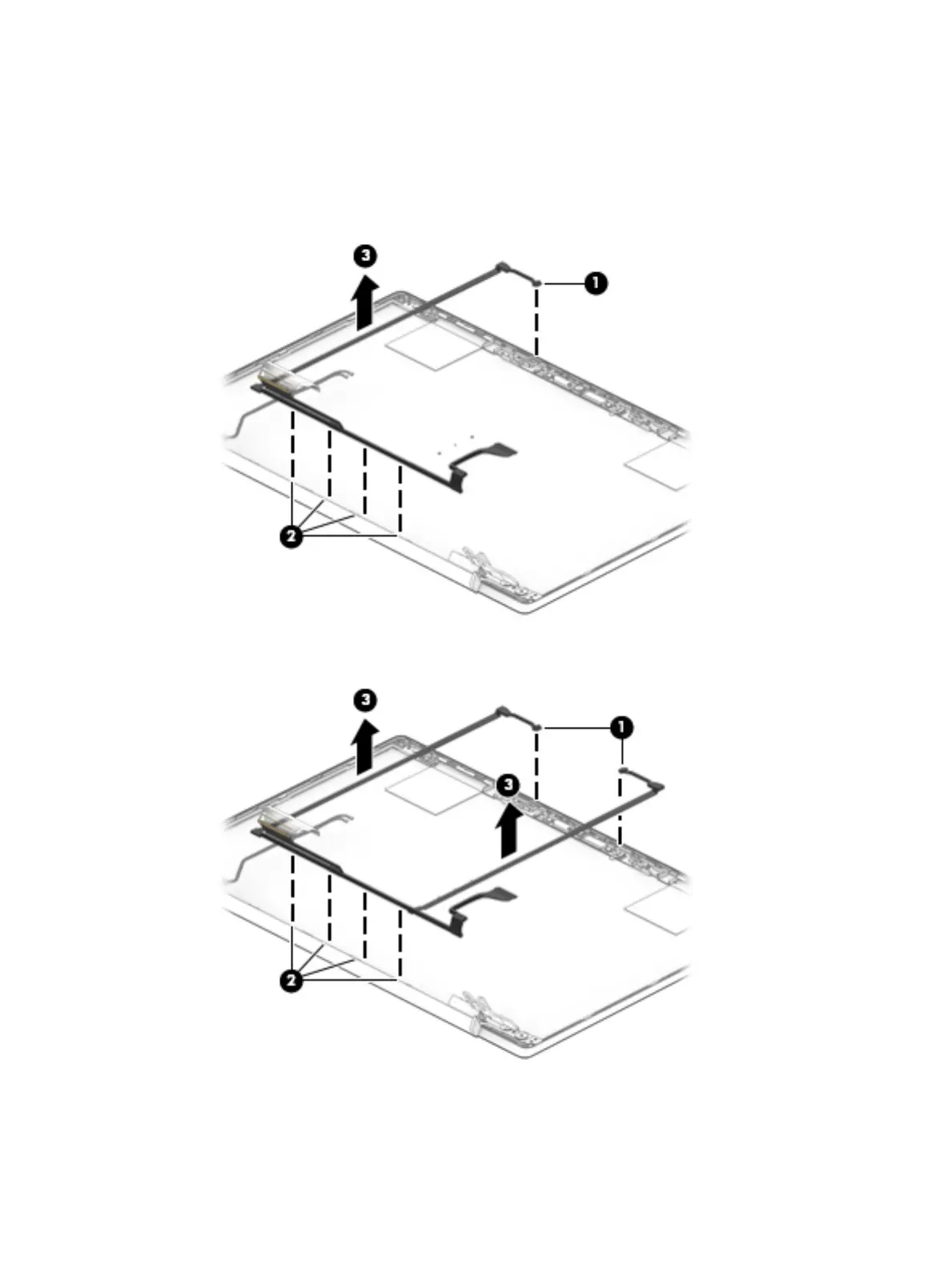

c. Remove the display panel cable (3).
The display panel cable is available using spare part numbers L19188-001 (for use only with the FHD
infrared camera/microphone module) and L19187-001 (for use only with the HD non-infrared
camera/microphone module).
Models with an HD camera
Models with an IR camera
14. If it is necessary to replace the wireless antenna cables and transceivers:
62 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
