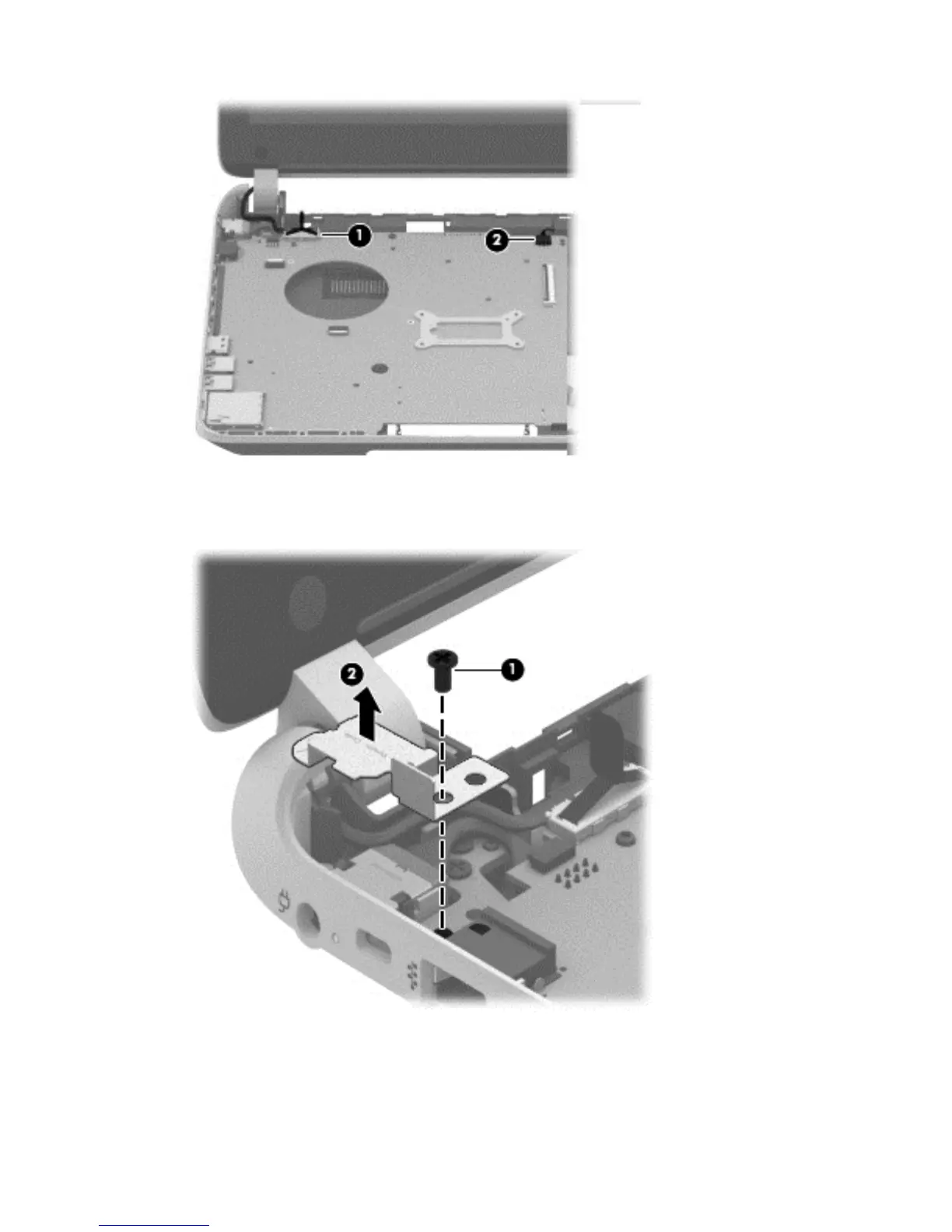

2. Remove the Phillips PM2.5×6.5 screw (1) that secures the power connector bracket to
the base enclosure. Remove the power connector bracket (2).
3. Remove the 2 Phillips M2.5×5.0 screws (1) that secure the system board to the base enclosure.
4. Lift the right side of the system board (2) until it rests at an angle.
84 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
