HP Pavilion 14

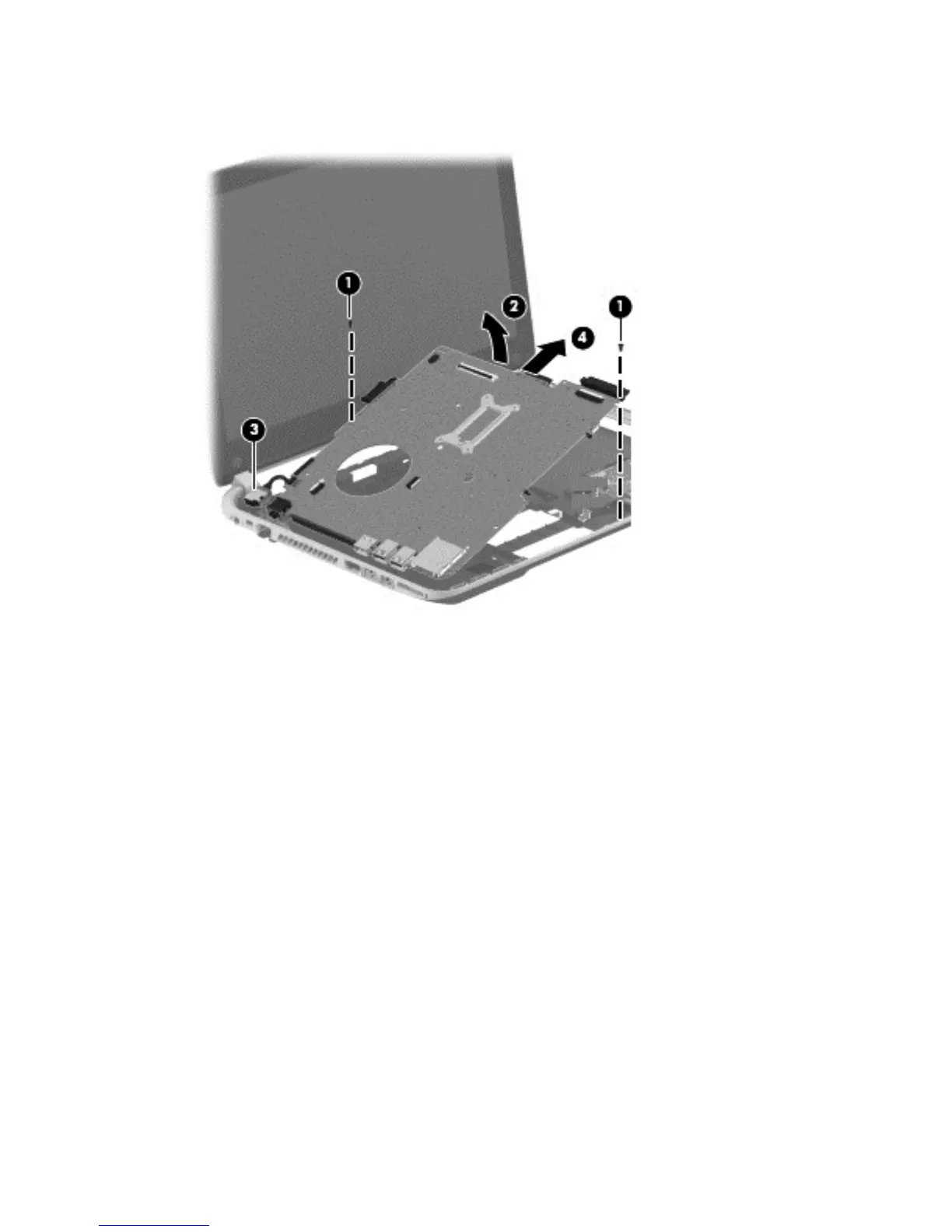

5. Carefully remove from the power connector (3). Remove the system board (4) by sliding it up
and to the right at an angle.
6. Remove the hard drive connector cable:
a. Turn the system board upside down, with the front toward you.
Component replacement procedures
85
