HP Pavilion 17 Series User Manual

4. Remove the battery (see Battery on page 27).
5. Remove the optical drive (see
Optical drive on page 28).
6. Remove the bottom cover (see
Bottom cover on page 32).
To remove the heat sink assembly:
1. Position the computer upright and open it..

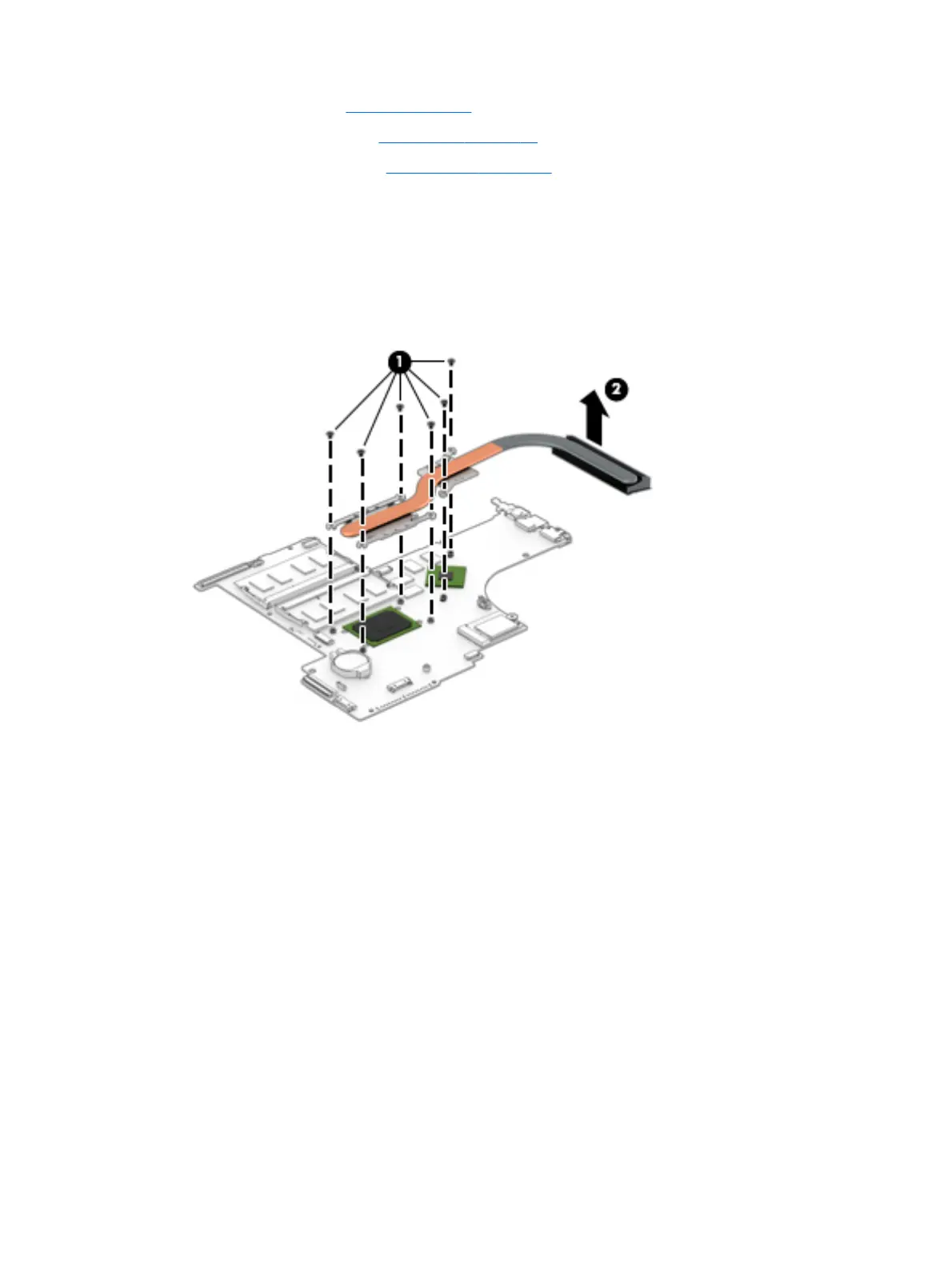

2. If you have a model with discrete graphics, In the order indicated, remove the six Phillips PM2.0×3.0
screws (1) that secure the heat sink to the system board.
3. Remove the heat sink (2) from the system board.
4. If you have a model with UMA graphics, In the order indicated, remove the six Phillips PM2.0×3.0 screws
(1) that secure the heat sink to the system board.
44 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

HP Pavilion 17 Series Specifications

General

Display Size	17.3 inches
Processor Options	Intel Core i5/i7
Storage Options	HDD + SSD
Graphics	Intel UHD Graphics, NVIDIA GeForce or AMD Radeon Graphics
Operating System	Windows 10
Weight	2.8 kg
Display Resolution	1920 x 1080 (Full HD)
Optical Drive	DVD-RW
Ports	HDMI, headphone/microphone combo
Wireless	802.11ac Wi-Fi; Bluetooth
Battery	4-cell Li-ion
RAM	16GB DDR4
