5. Remove the heat sink (2) from the system board.
●

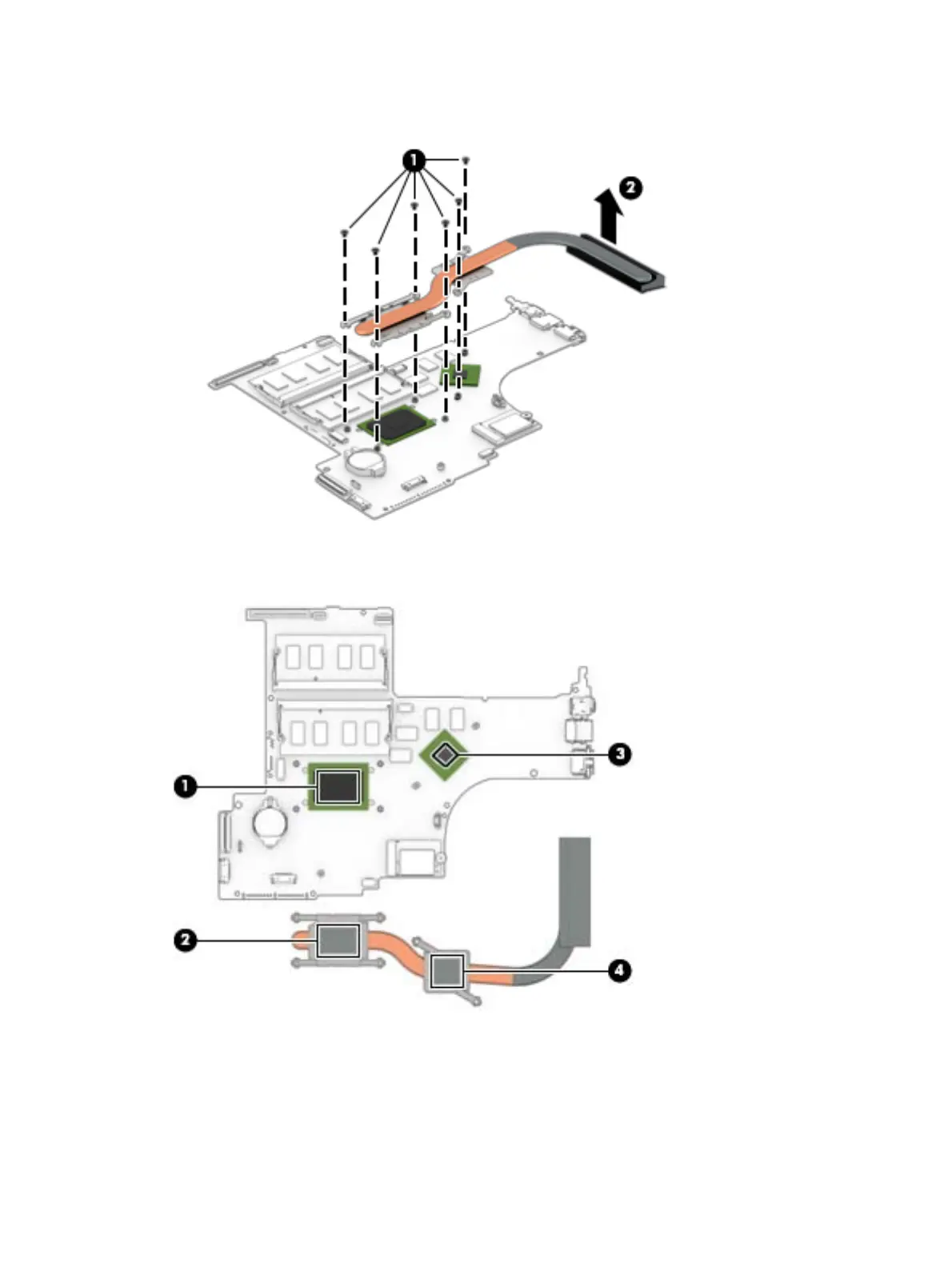

Discrete graphics: Thermal paste is used on the processor and associated heat sink area (1)(2), as well
as the graphics chip and associated heat sink area (3)(4).
●
UMA graphics: Thermal paste is used on the heat sink (1) and the processor (2).
Component replacement procedures 45
