HP Pavilion 17 Series User Manual

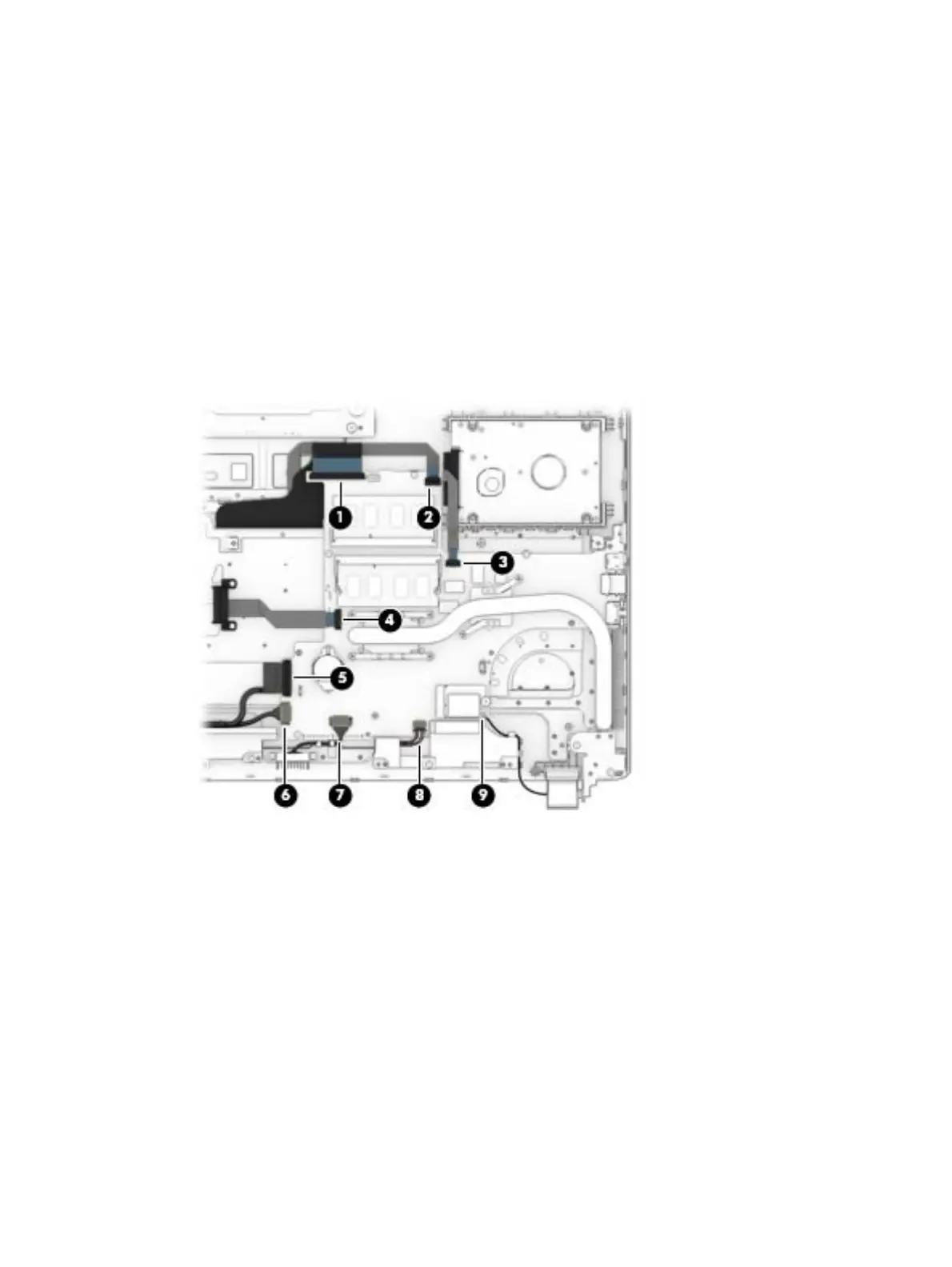

1. Position the computer upright, and then disconnect the following cables from the system board:
(1): Clickpad cable
(2): Touchpad cable
(3): Hard drive cable
(4): Optical drive cable
(5): Keyboard cable
(6): Power connector cable
(7): Display cable
(8): Speaker cable
(9): Power button board
2. Remove the four Phillips PM2.0×3.0 screws (1) that secure the system board to the computer.
Component replacement procedures 49

HP Pavilion 17 Series Specifications

General

Display Size	17.3 inches
Processor Options	Intel Core i5/i7
Storage Options	HDD + SSD
Graphics	Intel UHD Graphics, NVIDIA GeForce or AMD Radeon Graphics
Operating System	Windows 10
Weight	2.8 kg
Display Resolution	1920 x 1080 (Full HD)
Optical Drive	DVD-RW
Ports	HDMI, headphone/microphone combo
Wireless	802.11ac Wi-Fi; Bluetooth
Battery	4-cell Li-ion
RAM	16GB DDR4
