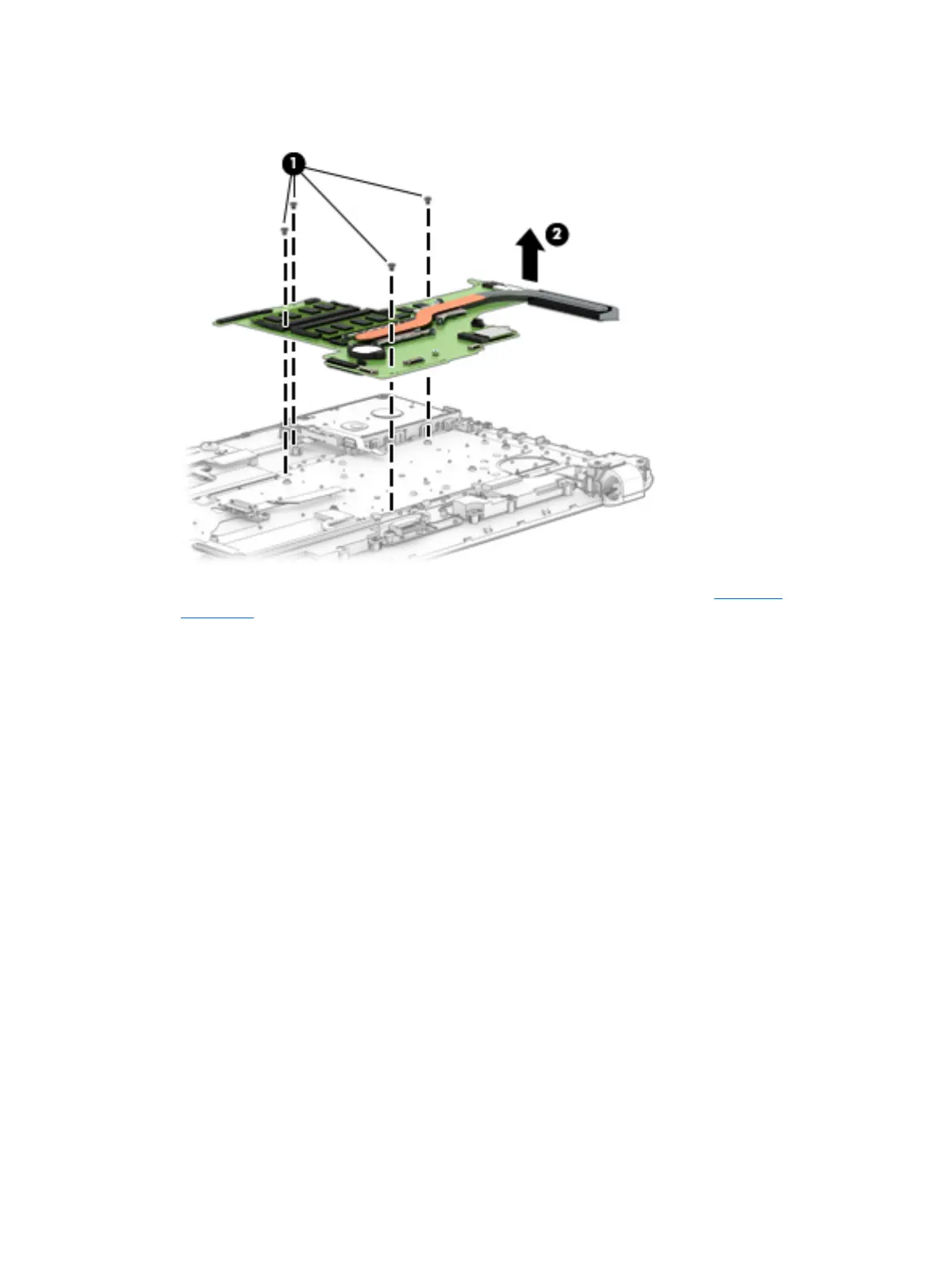

3. Lift the right side of the system board, and then lift the right side of the system board up to gain access
to the USB board cable and connector underneath (2).
4. Disconnect the USB board cable from the connector under the system board. See USB board
on page 51 for cable removal instructions.
Reverse this procedure to install the system board.
50 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
