HP Pavilion 17 Series User Manual

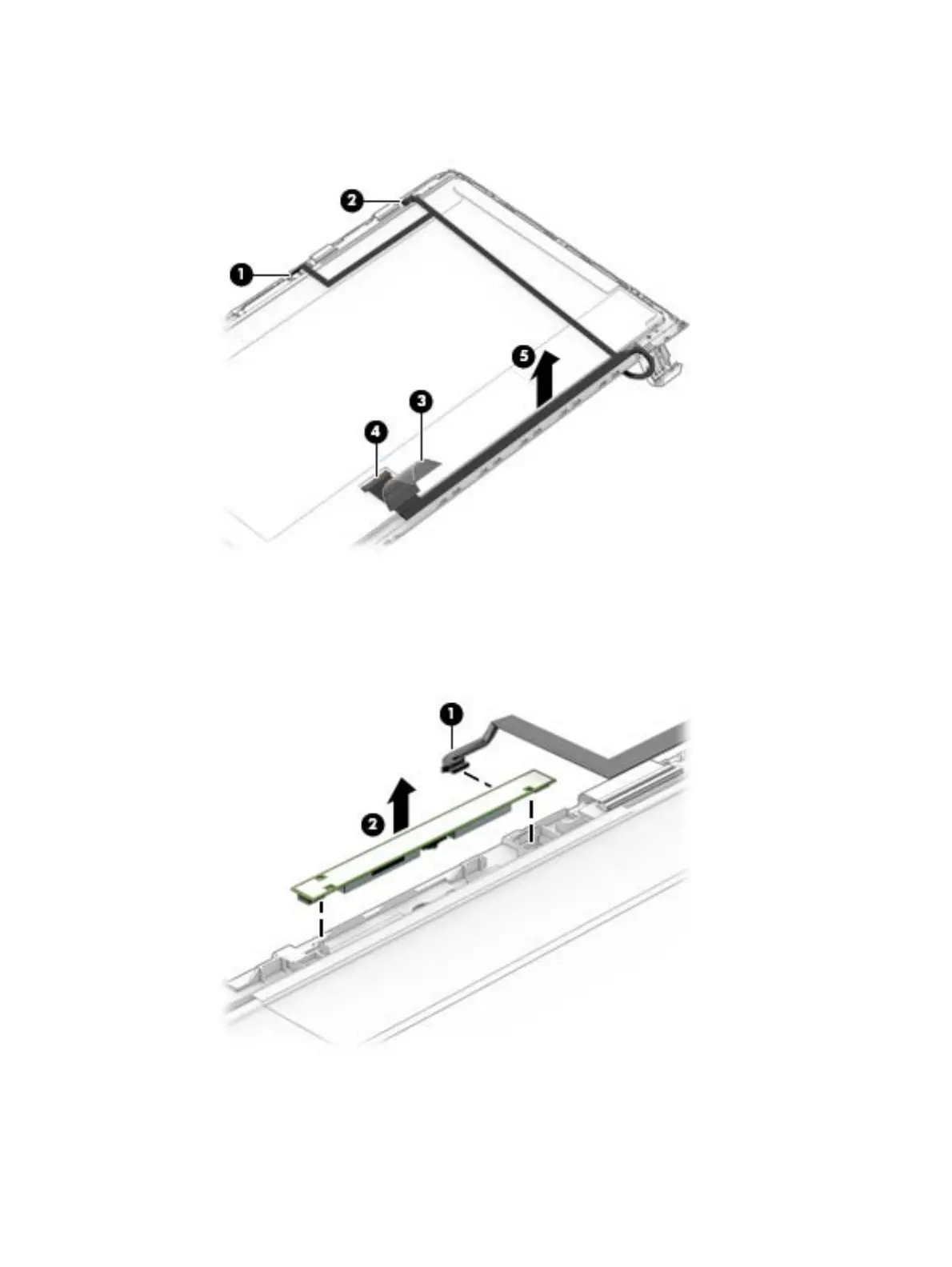

b. Turn the display with the bezel down and the back of the panel up. Disconnect the display cables
from the panel and bezel(1), (2). Release the connections (3), (4) and lift the panel (5).
2. To remove the webcam/microphone module, position the display assembly with the top edge toward
you.
a. Disconnect the cable (1) from the module.
b. Remove the webcam/microphone module from the display (2).
3. To remove the display panel:
a. Position the display assembly with the top edge toward you.
b. Remove the six Phillips PM2.0×1.5 screws (1) that secure the display panel to the bezel.
64 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

HP Pavilion 17 Series Specifications

General

Display Size	17.3 inches
Processor Options	Intel Core i5/i7
Storage Options	HDD + SSD
Graphics	Intel UHD Graphics, NVIDIA GeForce or AMD Radeon Graphics
Operating System	Windows 10
Weight	2.8 kg
Display Resolution	1920 x 1080 (Full HD)
Optical Drive	DVD-RW
Ports	HDMI, headphone/microphone combo
Wireless	802.11ac Wi-Fi; Bluetooth
Battery	4-cell Li-ion
RAM	16GB DDR4
