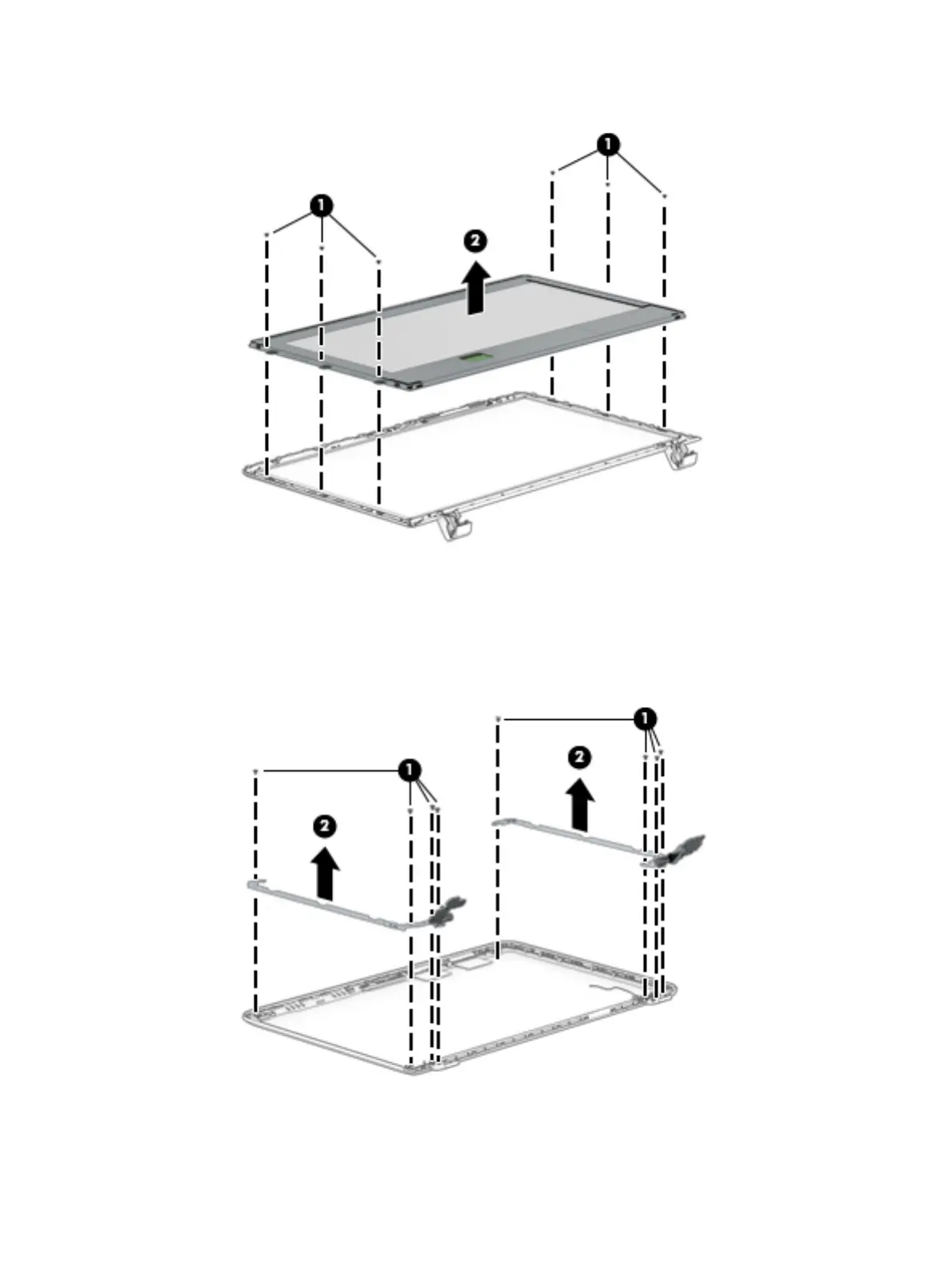

c. Lift the top of the panel (2).
4. To remove the display hinges:
a. Remove the six Phillips PM2.5×2.0 screws (1) from the bottom of the hinges, and the two Phillips
PM2.0×2.5 screws from the top of the hinges that secure the display hinges to the display.
b. Remove the display hinges (2).
Component replacement procedures 65
