4–10 Maintenance and Service Guide
Removal and replacement procedures

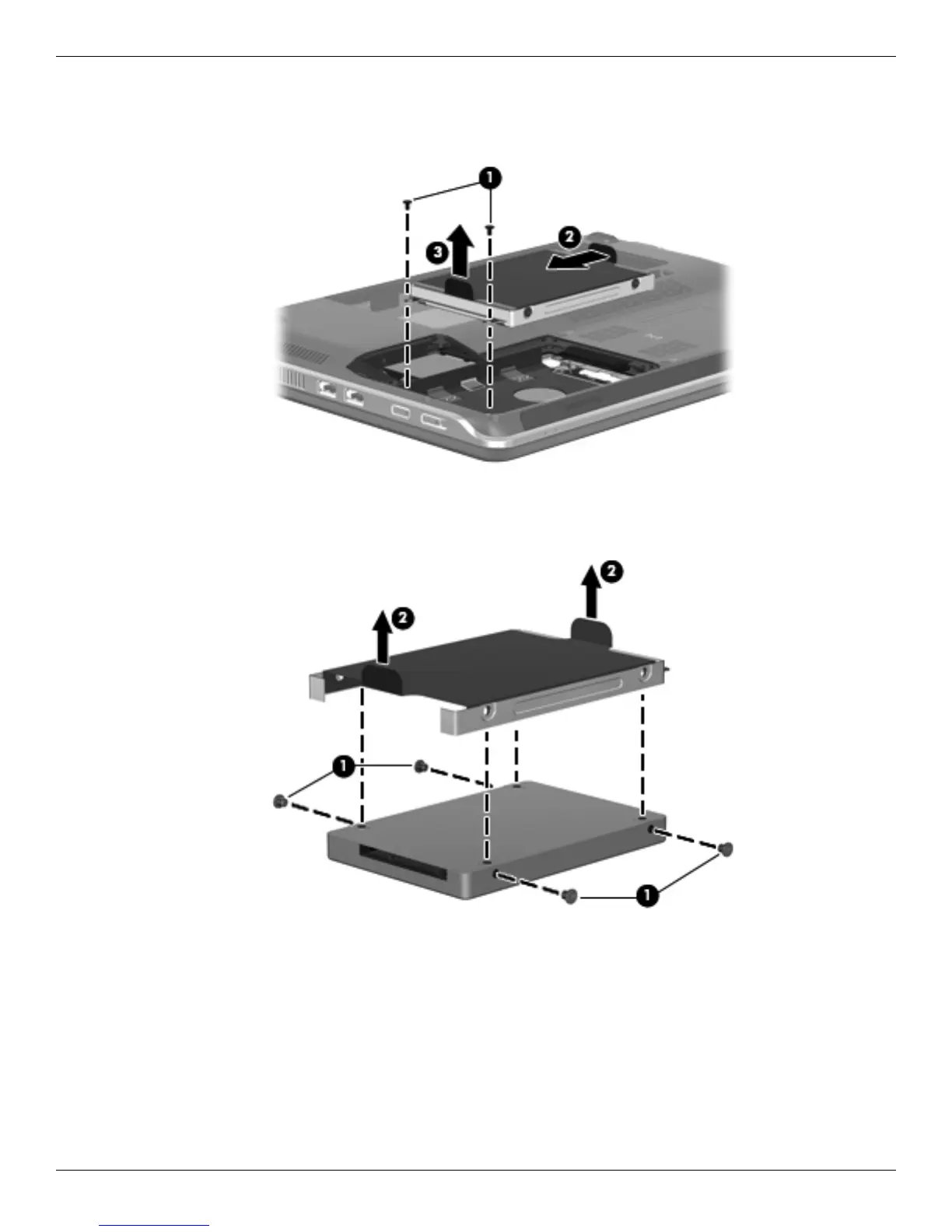

4. Loosen the two Phillips PM2.0x4.0 screws 1 that secure the hard drive to the computer.
5. Grasp the Mylar tab 2 in the hard drive bay, and pull it to the left to disconnect the drive from the system.
6. Grasp the Mylar tab 3 on the hard drive and pull it up to remove the hard drive from the sytem.
7. If it is necessary to replace the hard drive bracket or connector, follow these steps:
a. Remove the four Phillips PM3.0x4.0 screws 1 that secure the hard drive bracket to the hard drive.
b. Grasp the Mylar tabs on the bracket and lift the bracket 2 straight up to remove it from the hard drive.
Reverse this procedure to reassemble and install the hard drive.
