4–22 Maintenance and Service Guide
Removal and replacement procedures
Display assembly
✎
The display assembly spare part kit includes cables, nameplate, and logo.
Before removing the display assembly, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet, and then
unplugging the AC adapter from the computer.
4. Remove the battery (see “Battery” on page 4-6).
5. Disconnect the wireless antenna cables from the WLAN module (see “WLAN module” on page 4-12) and
WWAN module (see “WWAN module” on page 4-11).
6. Remove the keyboard (see “Keyboard” on page 4-16).
7. Remove the top cover (see “Top cover” on page 4-19).
Remove the display assembly:
1. Close the computer.
2. Turn the computer display-side up, with the front toward you.

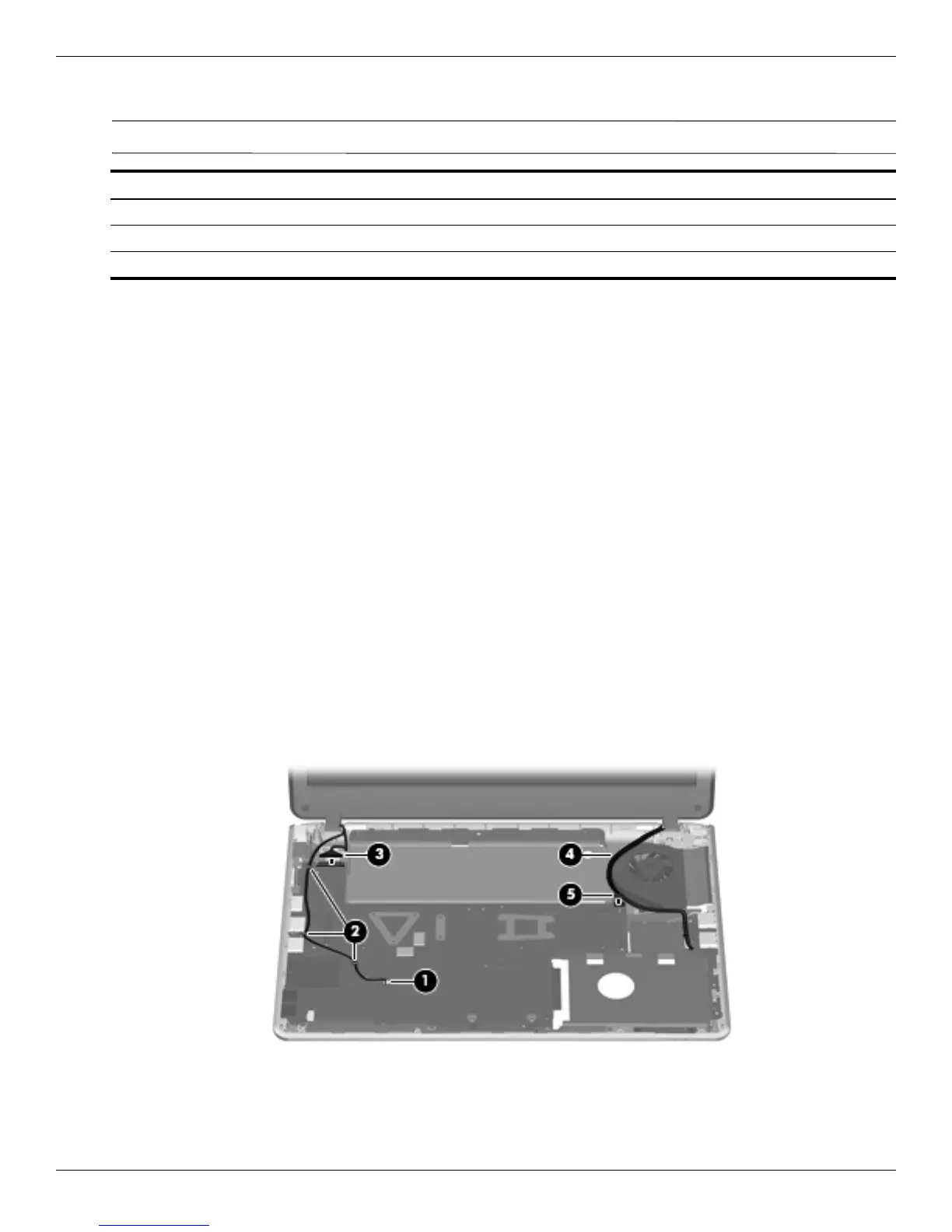

3. Disconnect and remove the WLAN cables 1 from the clips 2 built into the base enclosure.
4. Disconnect the display panel cable 3 from the system board.
5. Disconnect and remove the WWAN cables 4 from the system board.
6. Disconnect and remove the camera cable 5 from the system board.
Description Spare part number
13.3-in, LED, HD BrightView (1366x768) display assembly (AMD systems) 581177-001
13.3-in, LED, HD BrightView (1366x768) display assembly, WWAN (AMD systems) 591222-001
13.3-in, LED, HD BrightView (1366x768) display assembly (Intel systems) 580664-001
