4–24 Maintenance and Service Guide
Removal and replacement procedures

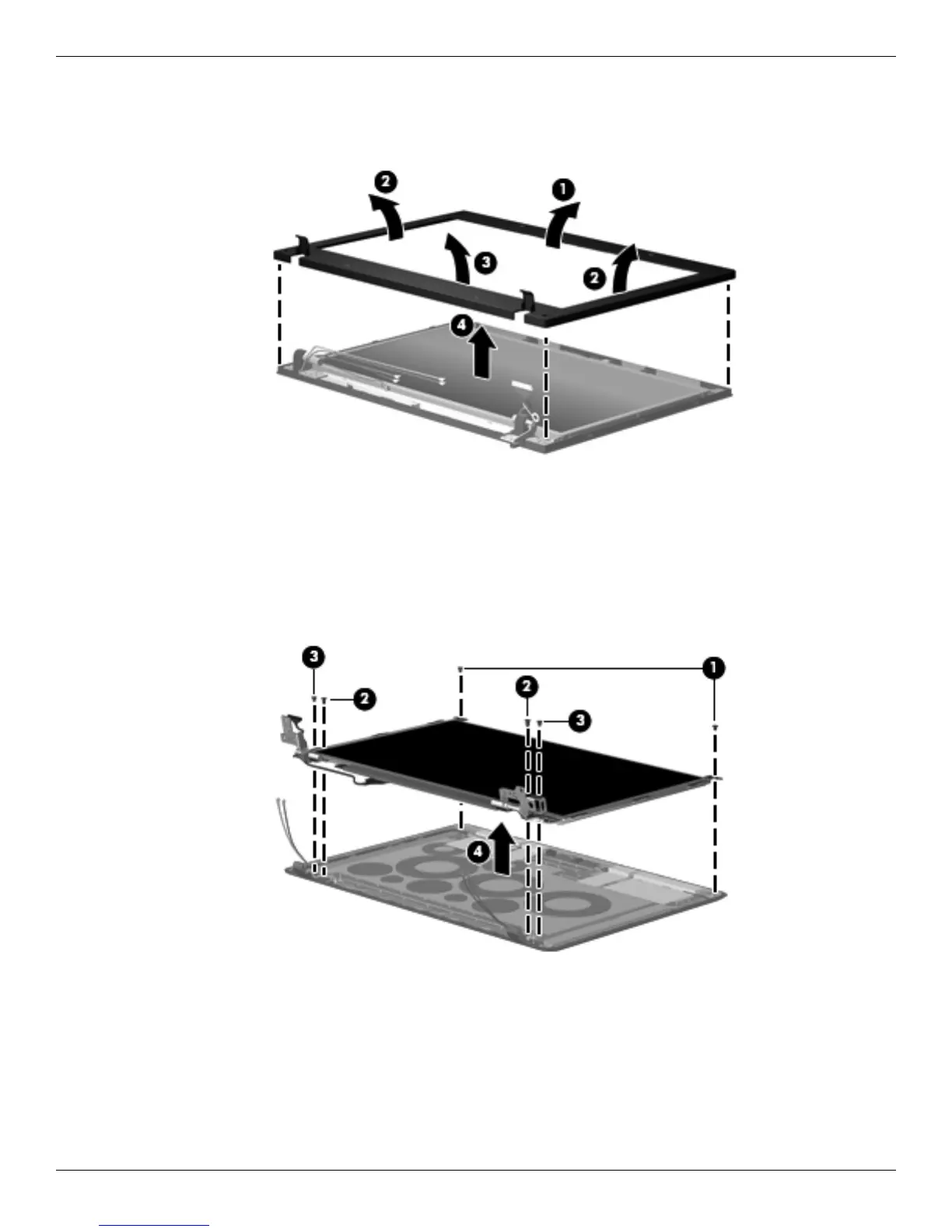

b. Flex the inside edges of the top 1, the left and right sides 2, and the bottom 3 of the display bezel until the
bezel disengages from the display enclosure.
c. Remove the display bezel 4.
9. To remove the panel:
a. Remove the following six screws:
1 Two Phillips 2.5×3.0 screws on top that secure the display panel to the display enclosure
2 Two Phillips 2.5×5.0 screws on top of each hinge
3 Two Phillips 2.5×4.0 screws on the bottom of each hinge
10. Remove the panel 4 from the enclosure.
