4–34 Maintenance and Service Guide
Removal and replacement procedures

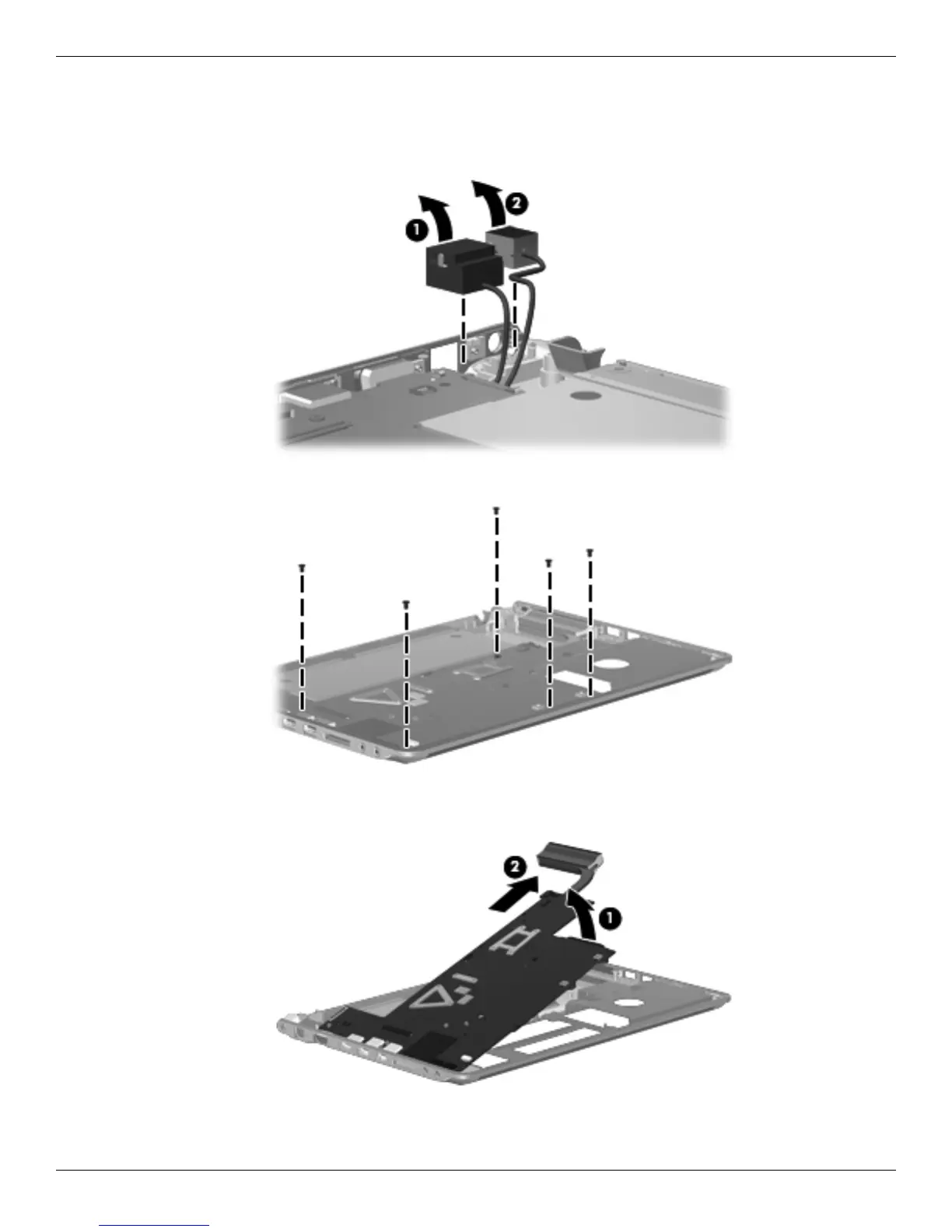

Remove the system board:
1. Disconnect the RJ-45 connector 1 from the enclosure.
2. Disconnect the power connector 2 from the enclosure.
3. Remove the five Phillips 2.5×4.0 screws that secure the system board to the base enclosure.
4. Lift up 1 on the right side of the system board, and then pull it to the right 2 to remove the system board from
the base enclosure.
Reverse this procedure to install the system board.
