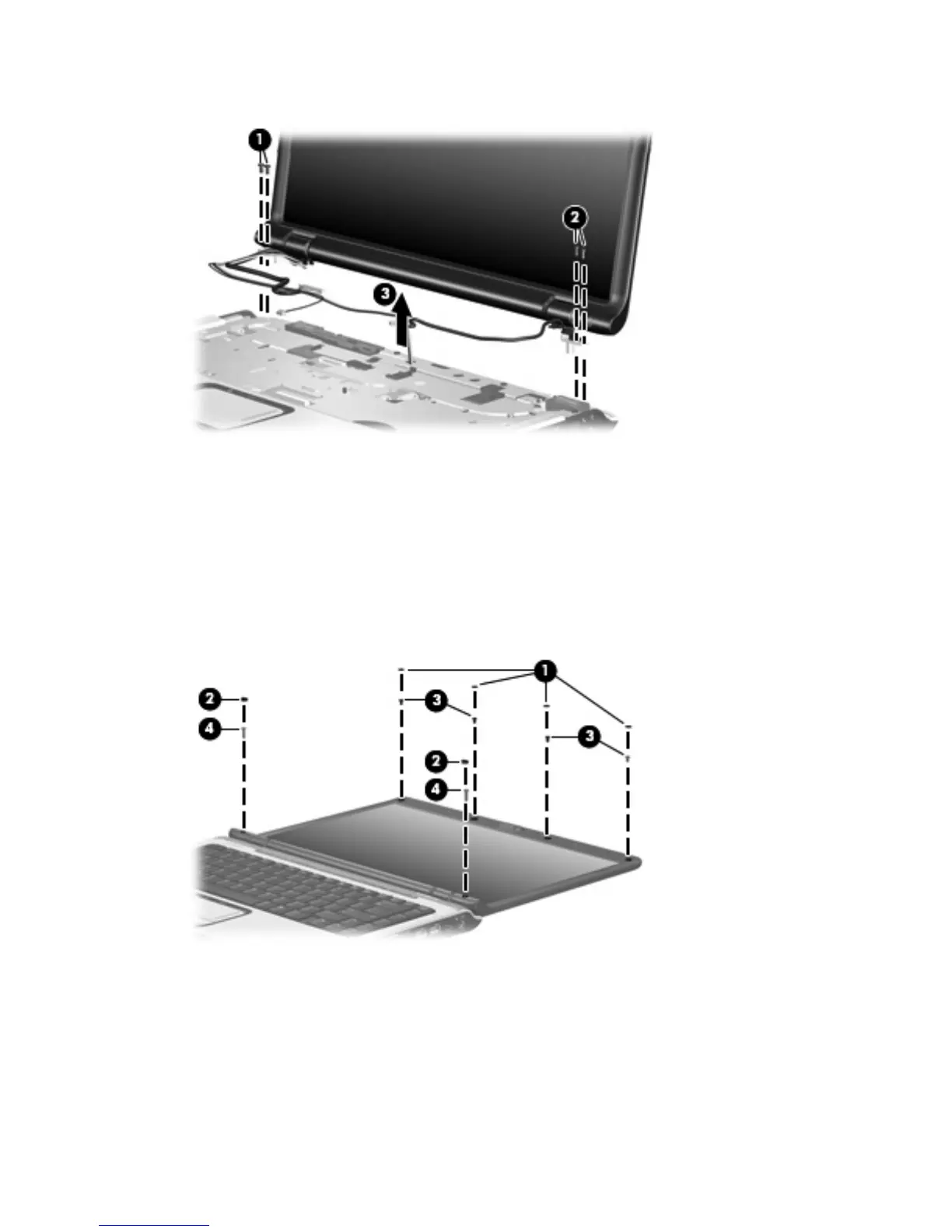

8. Remove the display assembly (3).
9.
If it is necessary to replace the display bezel or any of the display assembly internal components,
remove the following screw covers and screws:
(1) Four rubber screw covers on the display bezel top edge. The display rubber screw covers are
included in the Rubber Feet Kit, spare part number 417095-001.
(2) Two rubber screw covers on the display bezel bottom edge
(3) Four Phillips PM2.5×5.0 screws on the display bezel top edge
(4) Two Phillips PM2.5×9.0 screws on the display bezel bottom edge
10. Flex the inside edges of the left and right sides (1) and the top and bottom sides (2) of the display
bezel until the bezel disengages from the display enclosure.
11. Remove the display bezel (3). Display bezels are available using the following spare part
numbers:
448607-001 (for use only with computer models equipped with a camera module)
448606-001 (or use only with computer models not equipped with a camera module)
84 Chapter 4 Removal and replacement procedures
