4–40 Maintenance and Service Guide
Removal and replacement procedures

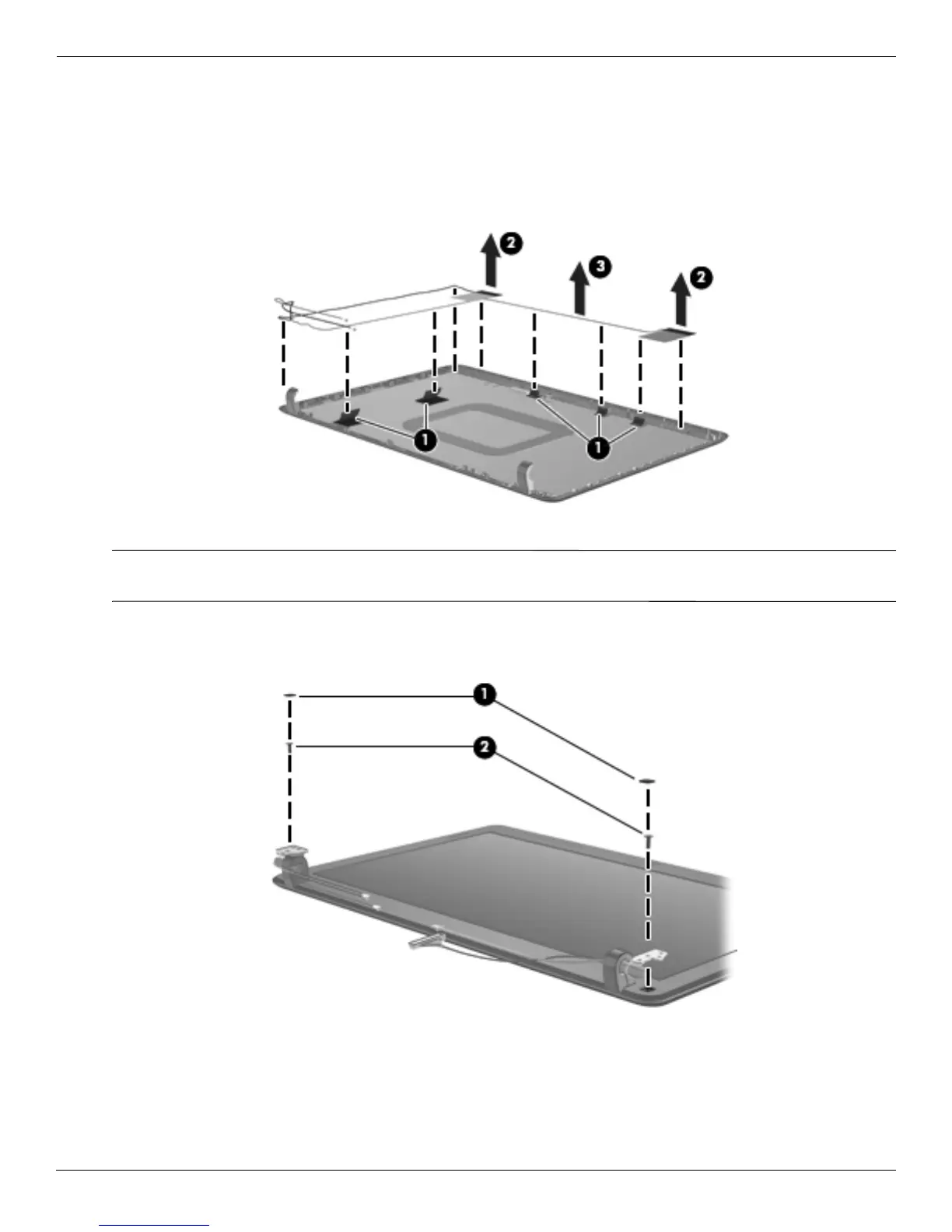

36. If it is necessary to replace the wireless antenna transceivers and cables, release the tabs 1 built into the display
enclosure shielding.
37. Release the wireless antenna transceivers 2 from the display enclosure. The transceivers are attached to the
enclosure with double-sided tape.
38. Remove the wireless antenna transceivers and cables 3. The wireless antenna transceivers and cables are
available using spare part number 531781-001.
✎
Steps 39 through 57 provide display assembly internal component removal information for computer models
equipped with touch screen display assemblies.
39. If it is necessary to replace the display bezel or any of the display assembly internal components, remove the
Mylar screw covers 1 and the two Phillips PM2.5×6.0 screws 2 on the display bezel lower edge.
40. Flex the inside edges of the top edge 1, the left and right sides 2, and the bottom edge of the display bezel
3 until the bezel disengages from the display enclosure.
