Removal and replacement procedures
Maintenance and Service Guide 4–41

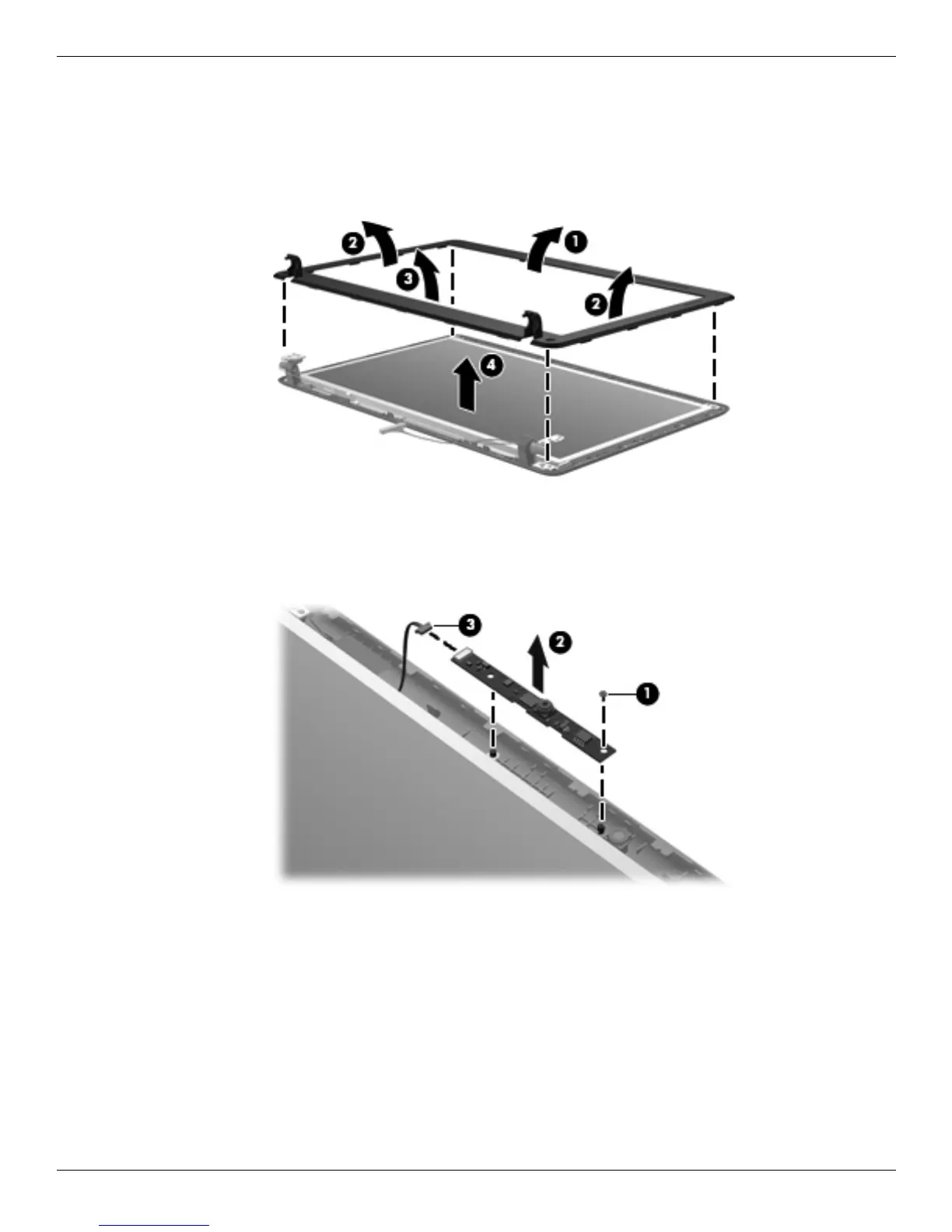

41. Remove the display bezel 4. The display bezel is available using the following spare part numbers:
❏ 593022-001—for use only with dv3-2300 computer models equipped with a 13.3-inch display assembly
and blue trim
❏ 595179-001—for use only with dv3-2000 computer models equipped with a 13.3-inch display assembly.
❏ 595180-001—for use only with dv3-2000 computer models equipped with a 13.4-inch display assembly.
42. If it is necessary to replace the webcam/microphone module, remove the Phillips PM2.5×3.0 screw 1 that
secures the module to the display, and then lift the webcam/microphone module 2 as far from the display
enclosure as the webcam/microphone module allows.
43. Disconnect the webcam/microphone module cable 3 from the webcam/microphone module.
44. Remove the webcam/microphone module. The webcam/microphone module is available using spare part
number 531785-001.
45. If it is necessary to replace the display panel, remove the six Phillips PM2.5×4.0 screws 1 that secure the
display panel to the display enclosure.
46. Disconnect the LED cable from the display panel 2.
